Metech Welded Mesh Inc supplies powder-coated welded steel wire mesh coated with a polymer resin mixed with color pigments and other additives. The powder coating enhances durability and corrosion resistance of the welded mesh panels. Powder coated welded wire mesh combines strength of welded wire with decoration and corrosion resistance of powder coating, suitable for various fencing applications.
Uses
- Fencing: For residential, commercial, and industrial fencing.
- Architectural Uses: Building facades, balcony railings etc.
- Garden and Agricultural Uses: For garden enclosures, animal cages, and other agricultural applications.
- Industrial and Safety: For machine guards, storage racks and industrial safety barriers.
Standard Specification and Customized Sizes
Powder coated welded wire mesh is offered in a range of standard sizes and can be customized.
- Mesh Sizes: Common sizes 1/2 inch x 1/2 inch (12.7 mm x 12.7 mm), 1 inch x 1 inch (25.4 mm x 25.4 mm), and 2 inches x 2 inches (50.8 mm x 50.8 mm).
- Wire Gauges: Common gauges 14 (2.03 mm) to 19 gauge (1.02 mm). Thicker wires like 12 gauge (2.77 mm) can also be provided for projects demanding greater strength.
- Standard Panel Dimensions: 24 inches x 24 inches (609.6 mm x 609.6 mm) to 48 inches x 96 inches (1219.2 mm x 2438.4 mm).
- Powder Coated: Polymer, or PVC.
- Color: A variety of colors are available including black, green, biege, grey and white.
- Customization: Custom sizes and specifications are available to meet specific project requirements. Mesh sizes, wire gauges, and panel sizes can be customized.
- Cut to Specific Dimensions: Mesh panels can be cut to precise dimensions as required for specific projects.
Powder Coated Wire Mesh Shelving for Singapore and Indonesia
We provide warehouse wire mesh shelving panel for customers in Singapore and Indonesia.
- Shelving Design: 3 Tie Decking Wire Panel, each capable of supporting up to 500kg weight.
- Quantity: 24 sets of shelving.
- Finish: All wire mesh decking panel is powder coated.

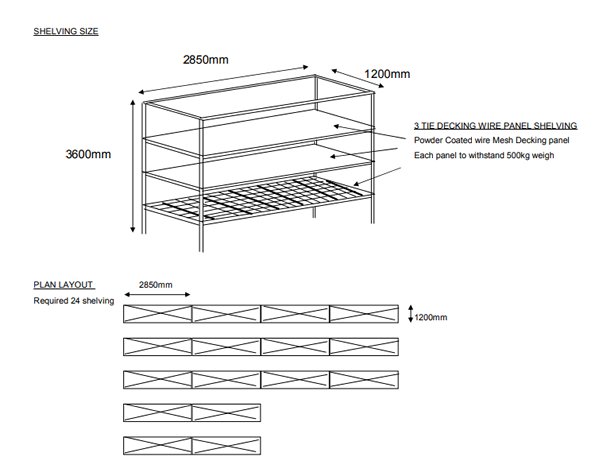

3-Tier Decking Wire Panel Shelving
- Material: Powder-coated wire mesh decking panel.
- Load Capacity: Each panel can withstand a weight of 500kg.
- Specifications for Shelving
Shelving Size:
Height: 3600mm
Length: 2850mm
Width: 1200mm

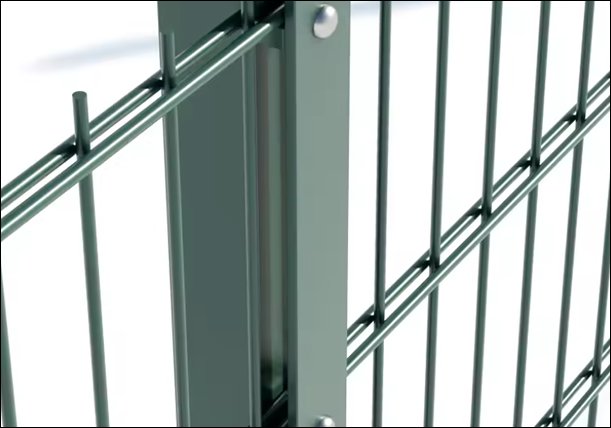

Powder-Coated Twin Horizontal Wire Weld Mesh Panels
- Mesh Size: 200mm x 50mm (7.87″ x 1.97″)
- Twin Horizontal Wire Diameter: 2 x 6.00mm (0.236″)
- Vertical Wire Diameter: 5.00mm (0.197″)
- Zinc Coating: Minimum 90 GSM (0.30 oz/sq ft)
- Tensile Strength: 450 – 550 MPa (65 – 80 Kpsi)
- Coating: Polyester powder-coated
- Color: Black (RAL 9005)
- Width: 2508mm
- Heights Available:
2430mm
1230mm
Note: Please specify panel height when placing an order.

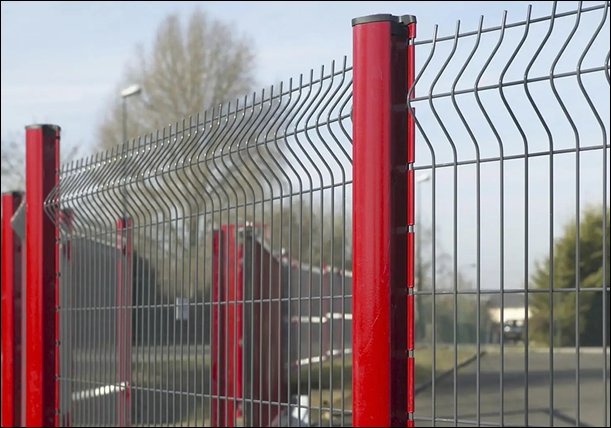

Powder Coated Steel 3D Bending Welded Mesh Fence Panels
Powder Coated Steel 3D Bending Mesh Fence Panels are for applications requiring robust and durable barriers.
We supply powder coated 3D fence panels to Australia: 4000 feet panels at 8 feet height.
Detailed Specifications
- Length: 2000mm to 3000mm.
- Height: Standard 8 feet (approximately 2438mm), options from 1500mm to 2500mm for different security levels.
- Mesh Size: 50mm x 200mm to 75mm x 150mm.
- Wire Diameter: 4mm to 6mm.
- Surface Treatment: All panels are powder coated, UV resistant.
- Galvanizing: Wire mesh panels are commonly galvanized with a zinc coating from 60 to 275 grams per square meter before powder coating.
- Tensile Strength: 450 MPa to 550 MPa. The fence panel offers high resistance to impact.
- Color and Finish: Standard colors include black, dark green, and white, with custom colors available upon request. The finish is smooth, uniform, and free of sharp edges.
