Stainless Steel Welded Wire Mesh Panels and Rolls SS 304, 316

Metech Welded Mesh Inc. manufactures and exports high-quality stainless steel welded wire mesh.

SS Material Grades

Stainless steel welded wire mesh is made from two main stainless steel grades: 304 and 316, both offering good corrosion resistance. Grade 304 is versatile and suitable for a wide range of applications, ss 316 containing molybdenum offers enhanced resistance to salt water and chemicals. The low carbon variants of SS 304L and 316L, offer improved weldability and minimize corrosion risk post-welding, 316L offers slightly better corrosion resistance than 304L.

Wire Diameter Options

Wire diameter of stainless steel welded wire mesh ranges from 0.5mm up to 8mm.

• For Fine Mesh: Wire from 0.025mm to 0.5mm, for fine mesh screens.
• For Medium Mesh: Wire 0.5mm to 3mm, for general fencing, guards, and shelving.
• For Heavy Duty Wire Mesh: Wire 3mm to 8mm, for reinforcement, heavy screens, and security barriers.

Mesh Sizes

Mesh spacing, or mesh size, can be 1x1mm to 100x100mm, suitable for various applications.

• Fine Mesh: 0.5×0.5mm to 1x1mm.
• Standard Mesh: 25x25mm, 50x50mm, 100x100mm, commonly used for architectural features, machine guards, and agricultural barriers.
• Large Mesh: Up to 200x200mm, used in construction for structural support, security fencing, and heavy-duty barriers.

Dimensions

Stainless steel welded wire mesh panels are available in sizes 1.2m x 2.4m and other sizes.

• Standard Sheet or Panel Sizes: 1.2m x 2.4m, 1.5m x 3m or customized sizes.
• Roll Sizes: Standard rolls length 30m, roll widths from 0.5m to 1.8m.

Finishes

Options include mill finish, polished, and paint coated.

• Mill Finish: Standard finish from the manufacturing process. Smooth with no additional finishing.
• Electro-Polished: Electro-polishing is a process used to smooth and enhance the corrosion resistance of the stainless steel.
• Powder Coating: Powder coating / paint for protective and decorative finish in colors.

Customized Specifications Available

• Standard specifications and custom wire diameters, mesh sizes and dimensions can be manufactured to meet customers unique requirements.

Export Specifications for S.S Welded Wire Mesh

Our product stainless steel welded wire mesh is exported to many countries. Detailed specifications of commonly exported products as follows:

14 gauge- 1/2″-T316L stainless steel welded mesh
Gauge: 14 gauge
Opening: 1/2 inch
Material: T316L stainless steel
For marine applications.

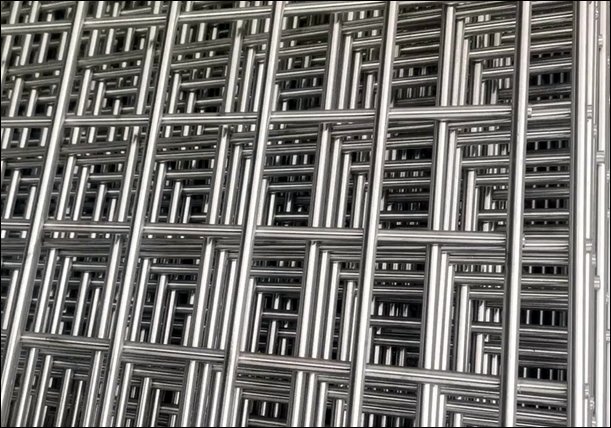

SS Welded Wire Mesh Panels
Wire Diameter: 5mm
Panel Size: 36 x 36 inches
Hole Size: 1 ½ inch
Panels for enclosure.

1 Inch X 1.5 mm Stainless Steel Welded Mesh
Mesh Size: 1 inch (25.4mm)
Wire Diameter: 1.5mm
Panel Dimensions: 3ft x 6ft
1-inch square mesh suited for a broad range of uses, from fencing to safety barriers.

Stainless Steel/SS Welded Wire Mesh Panels
Mesh Pattern: 100 x 25.4mm
Wire Thickness: 1.5 mm
Panel Size: 3 feet x 6 feet

Type 304 Stainless Steel Mesh Roll
Roll Size: 48 inches x 50 feet
Mesh Opening: Max 1/4 inch
Wire Diameter: Minimum 16 AWG (1.5mm)

Stainless Steel 1.4301 /AISI 304 Welded Wire Mesh
Wire Thickness: 2mm
Mesh Size: 50 x 50 mm
Material: Stainless steel 1.4301 AISI 304, Stainless steel 1.4301 (European standard similar to American standard ASTM 304).
Roll Widths: 1.5m, 2m
For architectural designs and security fencing.

Medical-grade welded wire mesh made from stainless steel 304 with the following specifications:
Material: Stainless steel 304
Roll Size: 4 feet x 100 feet
Mesh Openings: 1 inch x 1 inch, 3 inches x 1/2 inch, 1 inch x 1/2 inch
Wire Diameter: 2mm,2.5mm
For various medical applications.

Stainless Steel Welded Wire Mesh (304):
Material: Stainless steel 304
Mesh Opening: 20x20mm
Wire Diameter: 2mm
Sheet Dimension: 980x900mm

Stainless Steel Welded Mesh:
Wire Thickness: Approximately 1mm
Aperture: Min. 75%
Dimensions: 2 meters x 10 meters
For a wide range of applications: fencing, screening, industrial and etc.

SS Mesh Panels and Rolls Customized
