Metech Welded Mesh Inc manufactures and exports Electro Galvanized Wire Mesh in a wide range of specifications. We have advanced equipment and skilled technicians to customize products according to client requirements.
Application:
Electro-galvanized iron welded mesh is commonly used in light-duty fencing for partitioning, small animal cages, garden fencing, plant support and plaster mesh in construction, in agriculture for crop protection and vent covers.
Electro Galvanized Wire Mesh for Pakistan
Welded Wire Mesh with Post-Welding Electro Galvanizing Process
Welded wire mesh electro galvanized after the welding process featuring robustness and durability.
Electro Galvanized Square Wire Mesh
Square hole wire mesh electro galvanized with silver-bright finish:
| Mesh | BWG | Width (feet) | Length (feet) | Weight (kg) |
|---|---|---|---|---|
| 16×16 | 34 | 4 | 100 | 35 |
| 16×16 | 34 | 3 | 100 | 44 |
| 12×12 | 34 | 4 | 100 | 36 |
| 12×12 | 34 | 3 | 100 | 12 |
| 1/2″x1/2″ | 20 | 3 | 50 | 10.100 |
| 1/2″x1/2″ | 20 | 3 | 50 | 10.100 |
| 1/2″x1/2″ | 20 | 13.500 | 400 | 16.900 |
| 1/2″x1/2″ | 20 | 5 | 50 | 20.250 |
| 1/2″x1/2″ | 18 | 3 | 50 | 15.750 |
| 1/2″x1/2″ | 18 | 4 | 50 | 21.000 |
| 1/2″x1/2″ | 18 | 5 | 50 | 26.250 |
| 1/2″x1/2″ | 18 | 6 | 50 | 31.500 |
Electro Galvanized welded Wire Mesh for India
Electro Galvanized Welded Wire Mesh (42 x 48 inch Panel)
Galvanized before welding into square hole mesh. Mesh space 2 inches in length and width.
- Sheet Size: 42 x 48 inches
- Galvanizing: Pre-welding
- Hole Shape: Square
- Pattern: Box pattern
- Mesh Size: 2 inches x 2 inches
- Wire Gauge: BWG14
- Unit Weight: 1.1 kg
Electro Galvanized Welded Wire Mesh (40 x 46 inch Panel)
40 x 46 inch Electro Galvanized Welded Mesh, galvanized before welding process, in 2-inch x 2-inch box pattern manufactured with BWG14 gauge wire.
- Panels Size: 40 x 46 inches
- Galvanizing: Galv. before welding
- Pattern: 2-inch x 2-inch box pattern
- Wire Gauge: BWG14
- Unit Weight: 1.0 kg
Electro Galvanized Welded Wire Mesh (36 x 92 inch Panel)
36 x 92 inch Electro Galvanized Welded Mesh, galvanized before welding process, electro galv. square mesh with 2-inch square box pattern.
- Panel size: 36 x 92 inches
- Galvanizing: Electro galvanized before welding
- Mesh Pattern: 2-inch square boxes
- Wire Gauge: BWG14
- Weight per Unit: 1.8 kg
Electro Galvanised Welded Wire Mesh for Jakarta
Electro galvanized welded wire mesh 3″ x 3″ after welded.
Size : 1.8 x 30 m ( Dia wire 13 )
- Design: Electro galvanized
- Mesh Size: 3 inches x 3 inches, post-welding
- Sheet Size: 1.8 x 30 meters
- Wire Diameter: Gauge 13
Electro Galvanized Crimped Wire Mesh
- Mesh Size: 8mm x 8mm; Wire Diameter: 0.70mm; Roll Width: 100cm; Roll Length: 30m.
- Mesh Size: 8mm x 8mm; Wire Diameter: 0.70mm; Roll Width: 150cm; Roll Length: 30m.
- Mesh Size: 10mm x 10mm; Wire Diameter: 1.30mm; Roll Width: 100cm; Roll Length: 30m.
- Mesh Size: 10mm x 10mm; Wire Diameter: 1.30mm; Roll Width: 150cm; Roll Length: 20m.
- Mesh Size: 15mm x 15mm; Wire Diameter: 1.80mm; Roll Width: 100cm; Roll Length: 20m.
- Packing: Each roll is wrapped with paper and then covered with a woven bag for added protection during transport.
Galvanized Electro Welded Wire Mesh and Accessories Shipped to Singapore
Electro Welded Wire Mesh
Electro welded wire mesh, galvanized, hole size 50x50mm and 100x60mm.
- Hole Shape: Square and Rectangular
- Mesh Size: 50×50 mm, 100×60 mm
- Wire Diameter: 2.5 mm
- Roll Width: 2.0 m, 2.50 m
- Length: 30 m
Tying Wire (Galvanized)
- Diameter: 3 mm,2 mm
- Weight: 130 kg,120 kg
Round Bend U Bolt with Nuts and Strap
- Opening: 75 mm
- Length: 110 mm
- Thickness: 8 mm
Pipe Carbon Steel SGP (Galvanized)
- Size: 1-1/4 inch (32A)
- Length: 3 meters
- Post
Razor Wire (Galvanized)
- Concertina Coils Diameter: 0.70 m, 0.90 m
- Length: 1350 m
Electro Galv. Welded Mesh for Spain
- Fencing Panel Size: 2630mm long x 1247mm high fencing panels.
- Wire diameter: 4mm
- Mesh Size: 12.5mm x 77mm
- For fencing system in Spain.
Electro Galvanized Mesh for Shipment to Saudi Arabia
| Mesh Size (mm) | Thickness (mm) | Width (mm) | Length (m) | Type | Estimated Weight per Roll (kg) |
|---|---|---|---|---|---|
| 8×8 | 35 | 1000 | 30 | Electro Galvanized mesh Hard | 2000. |
| 9×8 | 35 | 1000 | 30 | Electro Galvanized mesh soft | 2000 |
| 9×9 | 35 | 1000 | 30 | Electro Galvanized mesh soft | 2000 |
| 60×60 | 18 | 1000 | 30 | Electro Galvanized mesh soft | 600 |
Electric Galvanized After Welded Mesh for Ukraine
Electric galvanized mesh galvanized post-welding for Ukraine.
- 1/2 inch Square Mesh: Wire gauge BWG24 x 1/2″ x 1/2″ square hole mesh, in rolls of 1m x 30m.
- Standard Square Mesh: Wire gauge BWG22 x 1″ x 1″ square hole mesh, in rolls of 1m x 30m.
- Rectangular Mesh: Wire gauge BWG22 x 1″ x 1/2″ rectangular opening mesh, in rolls of 1m x 30m.
- 2 inch Hole Heavy Square Hole Weld Mesh: Wire gauge BWG16 x 2″ x 2′ square mesh, in rolls of 1m x 30m.
Electro-Galvanized Welded Wire Mesh for UAE
- Standard Electro-Galvanized Mesh 20x20x1.5mm / 2.0M width / 50Lm (Roll) – Quantity – 200 ROLLS
- Heavy-Duty Galvanized Electro-Welded Mesh Wire Diameter 7mm x 200 x 200mm
- 25mm Electro Galvanized Mesh: 2mm Wire x 25mm x 25mm mesh welded
Electro Galvanized-Wire Mesh for Australia
- Mesh size: 50mesh
- Wire diameter: 0.20 mm
- Dimensions of Each Roll: length: 30 m (each Roll), width: 1m
- Quantity: 800 rolls
- Weight: 28-30 kg/rolls
Galvanized Wire Mesh and Nails to Pakistan
Electro galvanized welded mesh types:
- a- Electro galvanized welded mesh (120cm x 1.2″ x 30m * 29kg)
- b- Electro galvanized welded mesh (90cm x 1.2″ x 30m x 22kg)
- c- Electro galvanized welded mesh (120cm x 3.4″ x 30m x 32kg)
Hexagonal electro galvanized wire mesh types:
- a- Hexagonal electro galvanized wire mesh (120cm x 3.4″ x 45m x 6.5kg)
- b- Hexagonal electro galvanized wire mesh (90cm x 3.4″ x 45m x 4.5kg)
Electro galvanized wire types:
- a- Electro galvanized wire (25kg/bundle) BWG16 x 1000 kgs
- b- Electro galvanized wire (25kg/bundle) BWG18 x 1000 kgs
- c- Electro galvanized wire (25kg/bundle) BWG22 x 1000 kgs
Galvanized concrete steel nails specifications and packaging
- a- Galvanized concrete steel nail 3.0 x 30mm
- b- Galvanized concrete steel nail 3.1 x 40mm
- c- Galvanized concrete steel nail 3.4 x 50mm
- d- Galvanized concrete steel nail 3.7 x 60mm
- e- Galvanized concrete steel nail 4.5 x 80mm
- f- Galvanized concrete steel nail 5.0 x 100mm
- Packing: 1kg / box, 20box / carton
- 20 kg net weight, 20.5 kg gross weight
Electro-Plated Galvanized Wire Mesh for Malaysia
1) Welded Wire Mesh
Electro-plated galvanized welded wire mesh available in various gauges:
- 1/2 Inch Mesh: 20G, 18G, 16G
- 3/4 Inch Mesh: 18G, 17G, 16G
- 1 Inch Mesh: 17G, 16G, 14G
- Roll Size: 3×100, 4×100, 5×100, and 6×100.
2) Electro-Plated Galvanized Wire Mesh
Fine mesh available in:
- 30 Mesh: 1 MTR x 200 FT, available in 26 kg, 36 kg, and 40 kg
- 40 Mesh: 1 MTR x 200 FT, available in 30 kg, 34 kg, 40 kg, and 50 kg
- 60 Mesh: 1 MTR x 200 FT, in 40 kg weight
Wire Mesh Products to Sri Lanka
We supply galvanized welded wire mesh electro-galvanized after welding with zinc coating of 15g/m². We also supply PVC-coated galvanized welded wire mesh and galvanised wire netting to Sri Lanka. Detail specifications of the products per table below:
| PRODUCT | DIAMETER (SWG) | MESH | LENGTH | WIDTH | WEIGHT | QTY |
| BINDING WIRE | 18 | – | – | – | 25KG/COIL | 25 |
| ELECRO GALVANIZED HEXAGONAL WIRE NETTING Alternative: Hot dipped galvanized before weave; Coating: 35g-40g/m² | 22 | 1/2″ | 147.5FT | 3FT | 21.5KG | 21.5KG |
| PVC COATED GALVANIZED HEXAGONAL WIRE NETTING | 22 | 1/2″ | 147.5FT | 3FT | 12KG | 25 |
| Galvanized welded wire mesh, electro-galvanized after welding with an approximate zinc coating of 15g/m² . | 20 | 1/2″x1/2″ | 30m | 1M | 21.5KG | 25 |
| GALVANIZED WELDED WIRE MESH Heavy: Hot dipped galvanized after welding; Zinc coating | 20 | 1/2″x1/2″ | 30m | 1M | 21.5KG | 25 |
| 18 | 3/4″x3/4″ | 30m | 1M | 25.5KG | 25 | |
| 18 | 1″x1″ | 30m | 1M | 19KG | 25 | |
| 10 | 2″x2″ | 12FT | 7FT | 19.5KG | 25 | |
| PVC COATED GALVANIZED WELDED WIRE MESH | 20 | 1/2″x1/2″ | 15M | 1M | 13KG | 25 |
| 20 | 3/4″x3/4″ | 15M | 1M | 7.5KG | 25 | |
| 20 | 1″x1″ | 15M | 1M | 5.5KG | 25 |

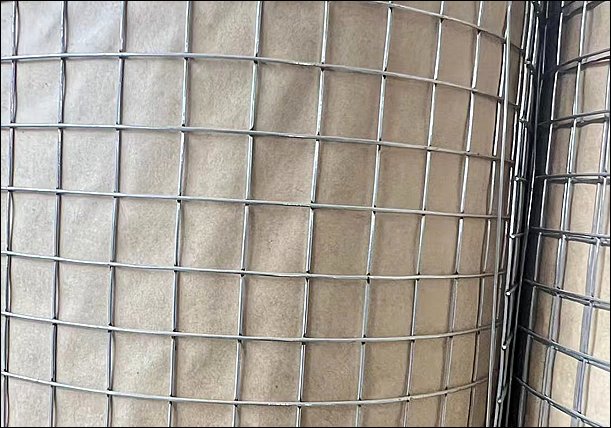

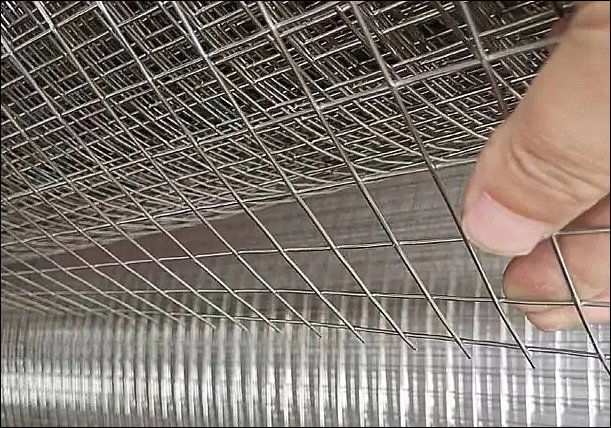

Rolls of electro-galvanized welded mesh with uniform square opening and smooth finish.
Application: For fencing, reinforcement in concrete, gardens and various industrial uses.

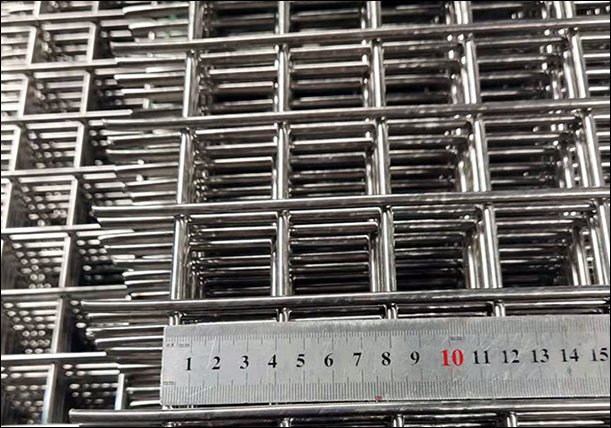

Electro-galvanized welded wire panels with precise grid for structural building reinforcement. Mesh Size: 1 inch (25.4 mm) square hole x 2mm wire diameter.
Mesh Type: Electro-galvanized welded wire
- Mesh Size: 1/4 inch (about 6.35 mm) up to 2 inches (about 50.8 mm).
- Wire Diameter: 0.5 mm to 4 mm.
- Uses: For enclosures, animal cages, and machine guards.
