Metech Welded Mesh Inc manufactures and exports PVC coated welded wire mesh. PVC Coated Wire Mesh is made from high-quality steel wire welded into grid then galvanized and coated with PVC (Polyvinyl Chloride).
PVC or plastic coated welded wire mesh is mainly used for temporary fencing, garden fencing, park fencing, animal enclosures, machine guards and industrial uses.
Process:
After the welding process, a coating process with PVC (Polyvinyl Chloride) /plastic is applied to the wire mesh. This uniform PVC coating covers the entire surface of wire mesh, including the welded spots, providing additional protection against corrosion, weather elements, and chemical exposure. The coating is also UV resistant.
PVC Welded Wire Mesh General Specification
Hole Shape
- Square, rectangular.
Mesh Size
- 1/2″x1/2″ and 3/4″x3/4″ Fine Mesh Sizes: For small animal enclosures.
- 1″x1″ Standard Mesh Sizes: For residential garden fencing, medium-sized animal enclosures, and general safety barriers.
2″x2″ Large Mesh Sizes: For larger animal enclosures, park fencing, construction site fencing and temporary fencing. - 1″x2″ and 2″x3″ Rectangular Mesh Panels: For garden fencing, agricultural plant support and protection.
Wire Gauge
- Heavy-Duty Wire Gauges
14 Gauge (About 2.0 mm): For heavy-duty security fencing and barriers requiring durability and strength.
16 Gauge (About 1.6 mm): For common commercial and industrial fencing uses.
- Middle Size Wire Gauges
18 Gauge (About 1.2 mm): For various security fencing and decorative garden barriers.
20 Gauge (About 0.9 mm): For residential fencing and animal cages. - Light-Duty Wire Gauges
22 Gauge ( 0.7 mm): For decorative projects and internal partitions.
23 Gauge ( 0.6 mm): For delicate applications.
PVC coated Welded Mesh Panel/Sheet Size
- 4’x8′ (1.2m x 2.4m): Widely used for residential fencing, garden enclosures, and small commercial projects.
- 6’x12′ (1.8m x 3.6m): Used for security or boundary fencing for industrial sites, large gardens.
- 8’x20′ ( 2.4m x 6.1m): Used for perimeter fencing, construction sites and agricultural fencing.
- Custom Panel Sizes: Custom dimensions available to meet specific requirements.
PVC Coated Welded Wire Mesh Roll Size
- 3’x50′ (0.91m x 15.24m): This roll size is commonly used for residential garden fencing or small animal enclosures.
- 4’x100′ (1.22m x 30.48m): For garden areas, commercial properties, public park fences.
- 5’x150′ (1.52m x 45.72m): For large commercial and industrial perimeter fencing, agricultural fencing, construction site fencing.
- 6’x200′ (1.83m x 60.96m): For agricultural perimeter fencing, industrial and facilities security fencing.
PVC Coating Finishes
PVC coating of welded wire mesh offers three benefits:
1, PVC coating offers enhanced durability and aesthetic appeal.
2, Color choices available for various landscape blending.
3, PVC coating provides a smooth finish, especially beneficial in public and residential fencing.
PVC Coated Welded Wire Mesh Products -For Construction Site Fencing, Perimeter Fencing and Various Uses
1)Black PVC coated welded wire mesh in 4ft x 150ft and 6ft x 150ft sizes, with 1-inch opening, for residential and commercial fencing uses.
2)PVC Coated Welded Mesh, 1″x1″ opening, in BWG diameters 15 to 20.
3)PVC GI Wire Mesh:
14×14 mesh, 0.39mm, in widths of 2ft to 4ft, each 3ft x 15mt roll weighs 14kg.
20 mesh, 0.35mm, 3ft x 15mt roll, weight 14kg.
28×26 mesh, 3ft x 15mt, weight 14.5kg.
4)PVC GI Draw Wire Mesh:
6×6 mesh, 3ft x 15mt, weights 11.5kg and 18.5kg.
7×7 mesh, 3ft x 15mt, weight 13.3kg.
8×8 mesh, 3ft x 15mt, weight 14.5kg.
5)PVC Coated Wire Mesh:
12×11 mesh, 0.39mm, in 3ft x 15mt (10.5kg) and 4ft x 15mt (14kg).
6)Vinyl-coated welded wire, 1″x1″ mesh, 14 gauge, in 100ft or 50ft rolls.
7)PVC-coated steel wire mesh for gabions, 100 x 125mm hexagonal pattern, 2.7mm wire, sized 1m³.
8)PVC coated welded wire mesh for fencing in Kuwait: dark green, 3/4″ mesh, BWG 16, 1.83m x 25m, and 1.5m x 25m sizes.
9)Green PVC-coated welded iron wire mesh, 2.2mm wire, 4″x2″ mesh.
10) PVC Coated Mesh in 50 ft or 100ft rolls.
Specifications of PVC Coated Mesh Roll we supply – 18 inch to 36 inch high :
| Quantity/rolls | Height/inches | Mesh Size |
|---|---|---|
| 10 | 18 | 2 x 1 |
| 15 | 14 | 2 x 1 |
| 20 | 48 | 2 x 2 |
| 5 | 36 | 1/2 x 1/2 |
| 20 | 36 | 2 x 1 |
| 10 | 48 | 2 x 1 |
| 5 | 36 | 2 x 2 |
11）We supply PVC Coated Chicken Wire Mesh (12/14 Guage)
| Quantity/rolls | Mesh/inches | Length/ft |
|---|---|---|
| 25 | 1 1/2 | 100 |
| 20 | 1 1/2 | 100 |
| 25 | 1 1/2 | 100 |
| 20 | 1 1/2 | 100 |
| 20 | 1 1/2 | 100 |
PVC Coated Chicken Wire Mesh, in 12/14 gauge, mesh size 1 1/2 inch, roll lengths 100 feet.
12)Rolls of green PVC-coated wire mesh, in 100 feet long x 2 feet tall, 1/4×1/4 inch square opening. For garden fencing, small animal cages and safety fencing.

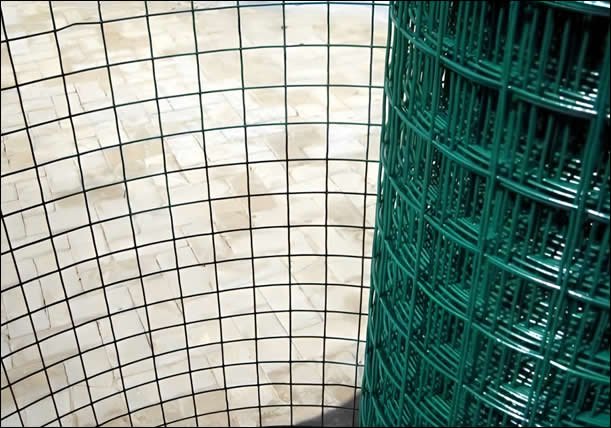

Dark Green PVC-coated welded wire mesh, square opening hardware cloth for secure enclosure and fencing uses in commercial and residential applications.
PVC-coated welded wire mesh rolls in black.
We supply pvc coated wire mesh customized in color, wire gauge, mesh size and roll / panel sizes.
