Metech Welded Mesh Inc manufactures wire fan guards for optimal airflow and safety protection of electric cooling systems. Our fan guards and grilles can be made galvanized steel or stainless steel for customers options.
Application: Wire fan guards are used for computer case grilles and industrial cooling systems, mainly shielding of industrial machinery, HVAC systems and various ventilation systems.
Materials:
Stainless steel
Zinc plated steel
Powder coated steel
6 Foot Wire Fan Guard for Large Ventilation System
6-foot (72-inch) wire fan guard
Wire spacing: 1/2″ spacing
Material: Zinc galvanized steel wire
Designed for:
Large-scale industrial fans;
Large HVAC system;
High dust ventilation system.
Customizable: Can be customized to fit various fan sizes and shapes
12 inch Fan Guard
Shape: Round disc
Uses: Flat guard for outside A/C
Size: 305mm fan guard
Fan Guard Powder Coated Black
| FAN | DRUM ID | A | B | C | D | E | R (INSIDE) | BOLT |
| 18 | 18.36 | 19.36 | 1/5 | 0.6375 | 17.625 | 1/4 | 11/32 | 5/16 |
Fan Guards for Cooling Fans
- Fan Guards 15.5″ x 3″
For standard fans in smaller to medium-sized walk-in coolers
Fan guard diameter: 15.5 inches
Height: 3 inches. - Fan Guards 20″ x 5″
For larger cooling fans
Fan Guard diameter: 20 inches
Height:5 inch
SS 316 Fan Guards
- Material: Stainless steel (S.S. 316)
- Ring and Rib Thickness: 1.6mm
- Weld Spot: Weld spots at a pull force of 88 lbs
- Ring Spacing: 4.3mm
- Tolerance: ±0.5mm
- Quality: 6.35mm plug gauge test.
Stainless Steel Finger Fan Guard
Stainless Steel Fan Guard in 500 Diameter
SS metal ( stainless steel ) finger fan guard for 150mm fan
Metal finger guard for 200mm fan
HVAC Fan Guards, Grille Fan Guard
HVAC fan guards for safety and air flow of HVAC systems.
- Max wire space (coated) – 45″: must not allow a UL 0.5″ probe to pass. [CE]
- Parts: ESF522 standard. [SE]
- Spiral direction: Clockwise or counter-clockwise.
- Corrosion and UV protection: ASTM D5894, with a 5-week cyclic test for UV exposure. [SE]
- Eyelet: For hanging during coating.
- Burr/sharpness: UL-1439 standard.
- Coating quality: no air bubbles or contamination visible in the coating.
- Radial rods: ends not visible through the center hub.
- Coating uniformity: No waves or lines.
- Tool marks: no tool marks or indentations permitted.
- Finish: polyester coat black, PY003. [SE]
- Weld strength: minimum crossed wire weld strength – 880 lbs.
- Flatness: maximum of .236 inches when measured from a plane.
- Tolerances: 2 place & 3 place +/-0.062.

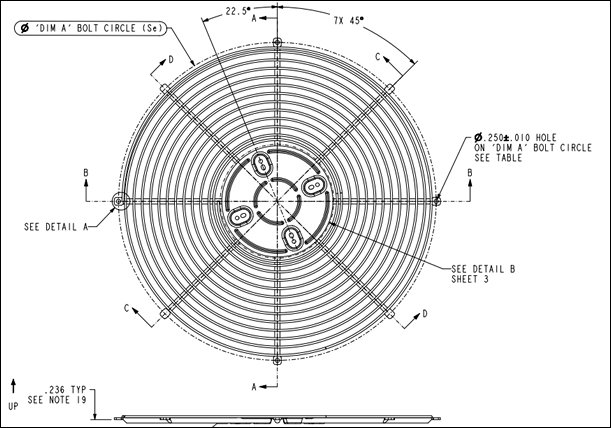

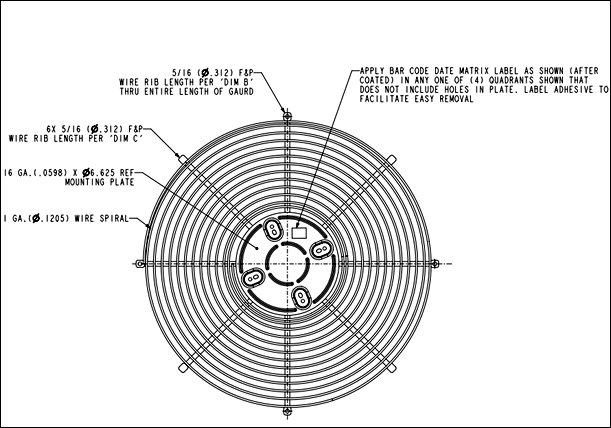

HVAC Fan Guards Specification:
| DIM A Bolt Circle | DIM B | DIM C | DIM D | DIM E REF | Ø 25.0±0.10 Hole |
|---|---|---|---|---|---|
| Ø27.006 | 27.506 | 13.063 | 3.210 | 13.237 | 8 Places |
| Ø23.000 | 23.500 | 11.060 | 1.184 | 11.234 | 4 Places |
| Ø18.945 | 19.444 | 9.032 | 9.207 | 9.207 | 4 Places |
Guard-Fan Grill Discharge
Steel Wire Grille Fan Guards, for cooling electronics and air systems.
