Metech Welded Mesh Inc. is a manufacturer and supplier of steel welded wire mesh suitable for wall plastering and construction reinforcing uses.
We supply fine and lightweight plaster mesh for interior applications and strong heavy wire mesh for exterior plasterwork finishes.
Welded wire plaster mesh products are available in a variety of mesh sizes, standard sheet/roll sizes and custom sizes.
Function: Welded wire plaster mesh provides a strong base for plastering walls and ceilings, for enhancing adhesion, preventing cracks and reinforcing the overall structure of the construction.
Plaster mesh is also known as Stucco Mesh in construction, when used especially for stucco plastering.
Product Features:
Plaster mesh is galvanized offering excellent corrosion resistance and extending the longevity of the wall finish;
Lightweight mesh structure easy to handle, easy to cut and fitted to various wall shapes;
Suitable for both internal and external reinforcing plastered walls;
Compatible with different types of plaster, cement-based and gypsum-based.
Material
Made from quality galvanized steel, welded steel plaster mesh is typically galvanized with zinc coating weights ranging from G-60 to G-90. “G” refers to galvanized, 60 or 90 indicates the weight of the zinc coating on the steel surface in ounces per square foot.
- G-60: 0.6 ounces of zinc galvanizing per square foot of steel surface.
- G-90: 0.9 ounces of zinc galvanizing per square foot of steel surface.
With a thicker layer of zinc, G-90 offers a greater level of corrosion resistance over G-60.
Reinforcing Plaster Mesh General Specifications
- Mesh Type: Welded steel wire grid, common mesh sizes 1/4 inch (6mm), 1/2 inch (12 mm), 3/4 inches (19 mm), 1 inch (25 mm).
- Gauge: Wire gauges 18-gauge (1.02 mm diameter) to 14-gauge (2.03 mm diameter).
- Sheet and Roll Dimensions: 3 feet x 8 feet, 4 feet x 8 feet, 4 feet x 10 feet; roll sizes, in width 0.8m, 1.0m, 1.25m, 1.5m and 2.0m and various length.

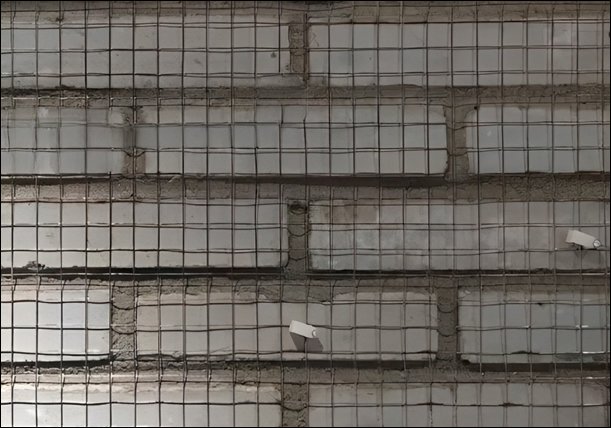

Plaster Mesh:
Welded plaster mesh for wall plaster layer providing a sturdy framework.
Plaster mesh is used in a broader range of applications including structural reinforcement in plasterwork both internally and externally, as well as various constructional reinforcing.
Plaster Mesh is typically applied over a solid brick or concrete base fixed with nails or clips.

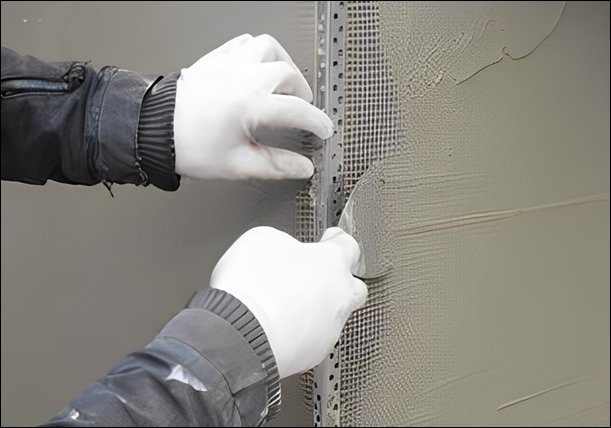

Welded wire mesh can be used for stucco plastering work:
Welded wire mesh for plaster-coated wall to ensure a strong bond. This step prepares the wall for an additional plastering layer, resulting in a finished surface.
