Metech Welded Mesh Inc. manufactures and exports high-quality Welded Wire Lath made of galvanized steel in various specifications.
Welded Wire Lath is also known as Stucco Netting or Stucco Mesh, for its primary application for stucco reinforcement in the construction industry.
Welded Wire Lath is a technical name for stucco netting.
Welded Wire Lathing Mesh / Stucco Netting General Specification
Welded Wire Lath provides a strong and durable base for plaster or stucco.
- Material: Galvanized Steel.
- Wire Gauge: From 16 to 18 gauge.
- Mesh Size: Square or rectangular hole, 1/4 inch x 1/4 inch (about 6 mm x 6 mm) to 2 inches x 2 inches (about 50 mm x 50 mm).
- Sheet Dimensions: Welded Wire Lath is commonly available in sheets widths 27 inches (about 686 mm), 36 inches (about 914 mm), and 48 inches (about 1219 mm), in various length.
- Furring Types
Flat Lath with No furring;
Self-Furring Mesh Lath: Designed for better keying of the stucco into lathing mesh. - Coating: Galvanized.
- Applications: Welded Wire Lath is used for interior and exterior plaster/stucco applications, also architectural applications.

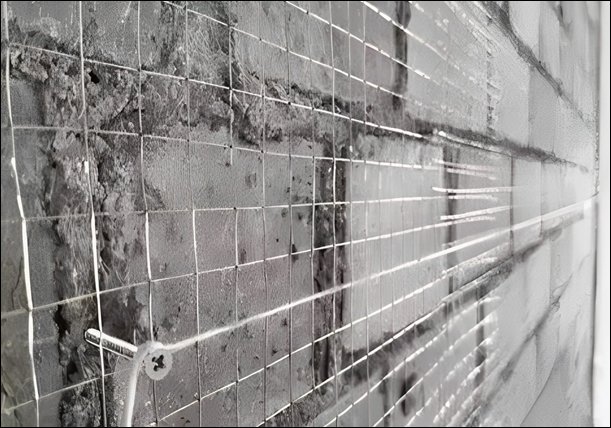

Stucco Wire
Stucco Mesh firmly affixed to wall for reinforcement process. Welded mesh sheet can support heavier stucco layers, suitable for both interior and exterior surfaces.

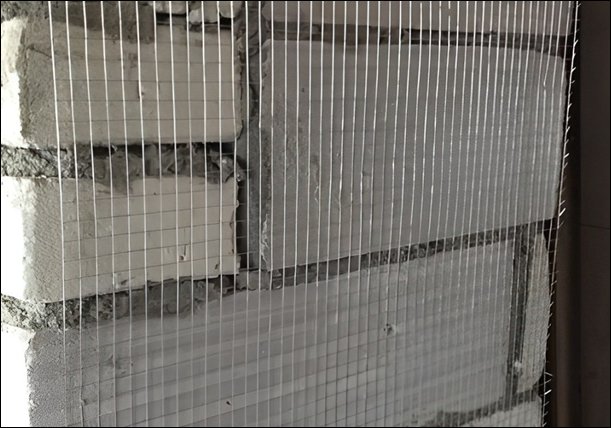

Non-Furring Stucco Netting and Self Furring Stucco Netting
Stucco Netting is suitable for general applications, providing a flexible and strong stucco base.
Self Furring Stucco Netting allows for easier installation and ensures an optimal distance from the wall surface for stucco application, is designed for enhanced support and reinforcement to the stucco layer.
Non Furring Stucco Netting Roll Plain 20-gauge 36”x 150-ft
- Gauge: 20-gauge wire.
- Roll size: 36”x 150-ft
Quantity Per Pallet: 32 rolls
Material: Plain Stucco Netting
Roll Size: 36 inches in width,150 feet in length.
Self Furring Stucco Netting 17-gauge 1 1/2”x 37 1/2” x 150-ft
- Application: Self-furring feature allows for more effective keying of the stucco into wire netting.
Installation: The self-furring design simplifies installation by automatically providing the required spacing between the stucco netting and the wall, which enhances the stucco’s grip and overall finish. - Quantity Per Pallet: 18 rolls
Material: Plain Self Furring Stucco Netting
Wire Gauge: 17-gauge. Thicker wire ensures better support for stucco application, especially in environments requiring enhanced structural integrity.
Mesh Size: 1 1/2 inches.
Roll Size: 37 1/2 inches in width and 150 feet in length.
Stucco netting features a uniform flat welded square mesh, crucial for an even stucco application. The design facilitates mechanical bonding in plastering.
