Welded Gabions: Black PVC Coated Welded Gabions and Gabion Basket Galvanized

Metech Welded Mesh Inc manufactures and exports high-quality welded galvanized mesh gabions for retaining walls, landscaping and erosion control projects. We supply welded galvanized gabions of complete specifications and custom sizes. Steel wire basket gabions made from welded wire mesh panels hot dipped galvanized, Galfan and powder coated finishes.

Materials and Coatings for Welded Wire Gabions

Welded wire gabions are made from high-strength, durable steel wire. The coatings include:

• Galvanized Zinc Coating
• PVC Coating available in various colors
• Galfan Coating ( zinc-aluminum alloy coating

Applicatons of Welded Wire Gabions

• Retaining Wall for civil engineering construction projects.
• Erosion Control for riverbanks and slopes protection.
• Decorative Gabions for architectural and landscaping projects.
• Infrastructure Protection Gabions for bridges, roads, and culverts construction.

Welded Gabions General Specifications

Gabion basket size:

• Length: 1 meter (3.28 feet), 2 meters (6.56 feet), 3 meters (9.84 feet), 4 meters (13.12 feet).
• Width: 0.5 meter (1.64 feet), 1 meter (3.28 feet), 1.5 meters (4.92 feet).
• Height: 0.5 meter (1.64 feet), 1 meter (3.28 feet), 1.5 meters (4.92 feet).

Welded Mesh Size:

Common welded mesh size:
75mm x 75mm (3 inches x 3 inches)
50mm x 50mm (2 inches x 2 inches).

75mm x 75mm (3 inches x 3 inches) welded wire gabions, can be used for:

• Retaining Gabion Walls
• Erosion Control
• Decorative Applications

50mm x 50mm (2 inches x 2 inches) welded mesh gabions, can be used for:

• High-stress applications
• Security barriers

Other Mesh Sizes Available:

• 100mm x 100mm (4 inches x 4 inches)
• 25mm x 25mm (1 inch x 1 inch)

Gabions Wire Diameter:

3mm to 5mm

• 3mm (0.12 inches)
  Light-Duty Applications: Suitable for low-stress residential landscaping or decorative architectural features.
• 4mm (0.16 inches)
  Moderate-Stress Environments: Slopes or banks stabilization.
• 5mm (0.2 inches)
  For high-stress retaining walls, coastal and riverbank protection.
• Other Wire Diameter Available

Gabions Products

Gabion Baskets BS 1052 Standard
For UK Project
Materials: PVC-coated welded wire mesh.

Gabion Mesh 100 x 50mm / Size 100x30x30 / Wire diameter 3.6mm
Gabion Mesh 100 x 50mm / Size 100x50x30 / Wire diameter 3.6mm
Gabion Mesh 100 x 50mm / Size 100x80x30 / Wire diameter 3.6 mm
Gabion Mesh 100 x 50mm / Size 100x100x30 / Wire diameter 3.6 mm

Hot Dipped Galvanised Wire Gabion Boxes

Gabions for walls, trenches, roadside protection, culverts project.
Wire 2.7/3.4
Wire mesh 80×100
Zn coated 245gr Zn/m2

Size:

1x1x1

1.5x1x1

2x1x1

2.5x1x1

3x1x1

Gabions Rock Baskets for Protective Wall

Welded gabions made from wire 6mm, dimensions 1x1x2m, opening 10x10cm

Rock baskets (gabions) for protective wall
Standard no. EN 10223-8 “Steel wire and wire products for fencing and netting – Part 8: Welded mesh gabion products”

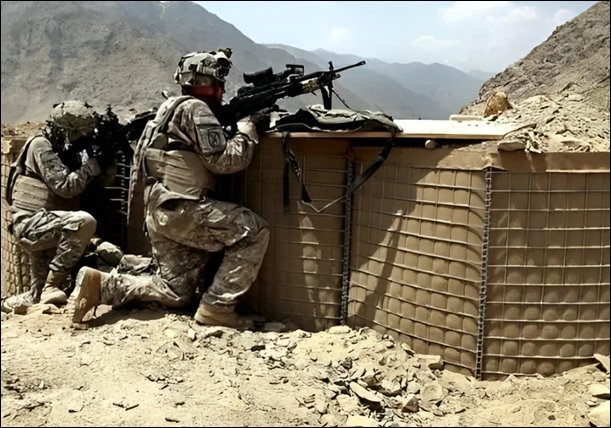

Defensive Military Gabions

1m x 1m Welded mesh basket gabions for military fortification use. Galfan coated steel gabions with non-woven polypropylene geotextile providing protection barrier in conflict zones and army areas.

• Material : Stainless Steel wire
• Wire diametre : 3 mm
• Spring wire : 3 mm
• Mesh hole : 50 mm x 50 mm
• Geotextile : Heavy duty non-woven polypropylene
• Finish : Galfan coated welded mesh frame
• Dimensions : 1m x 1m

Black PVC Coated Welded Wire Gabion Basket

Black PVC Coated Welded Wire Gabion Basket with corrosion protection black PVC (Polyvinyl Chloride) coating.

• Core Wire Diameter: 2.7mm to 4.0mm before PVC coating.
• Diameter with PVC Coating: 3.0mm to 4.5mm.
• Opening: Square hole or rectangular hole
• Mesh size:
  75mm x 75mm (3″ x 3″)
  50mm x 50mm (2″ x 2″)
  100mm x 50mm (4″ x 2″)
• Basket Sizes: Custom sizes available upon request.
  2m x 1m x 1m (Length x Width x Height)
  2m x 1m x 0.5m (Length x Width x Height)
  1m x 1m x 1m (Length x Width x Height)
• Accessories:
  Gabion baskets are supplied with accessories for assembly and installation: spirals, stiffeners, hog rings, and tie wire.

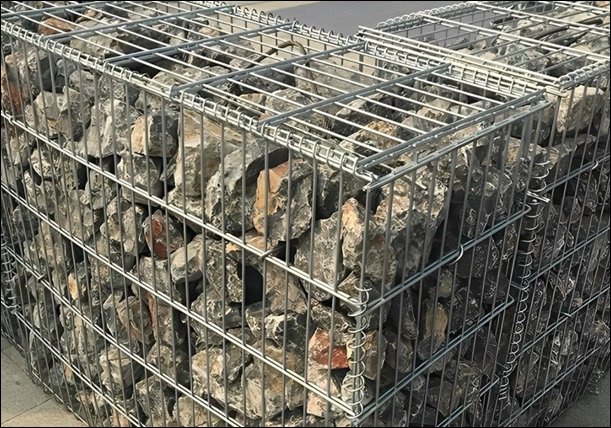

Welded Mesh Gabion Boxes Hot Dipped Galvanized

• Hot-dip galvanized according to ASTM standards, min. zinc coating of 245g/m².
• Wire thickness: 5mm
• Square opening: 8×8 cm
• Gabion Box size: 2x1x1m

Customized Gabion Product

• Welded wire gabions 12’x3’x3′ and 5’x4.5’x3′.
• Gabion welded mesh 25mm to 100mm and panel sizes up to 2×1 meters.
  Aperture Sizes: 25mm to 100mm. We cater to various requirements with a wide array of mesh openings.
• Welded gabion boxes, galvanized after welding, 2000L x 1000W x 250H mm, mesh 76*76mm x wire diameter 4mm.
  Finish: Zinc Galvanized after welding.

Project: PVC Coated Wire Mesh Gabion Basket for Retaining Walls

Welded Gabion Baskets

Gabion baskets of galvanised square wire mesh welded, specifications as following:

1. Quality: Welded wire per ASTM A185, wire galvanized before welding.
2. Mesh Opening: Square hole mesh 3-inch x 3-inch
3. Gabion Wire Diameter: 3.0 mm min.
4. Surface Finish: Galfan (95% Zinc, 5% Aluminum) coated and pvc coated.
5. Accessories: Gabions supplied with lacing wire for site assembly.

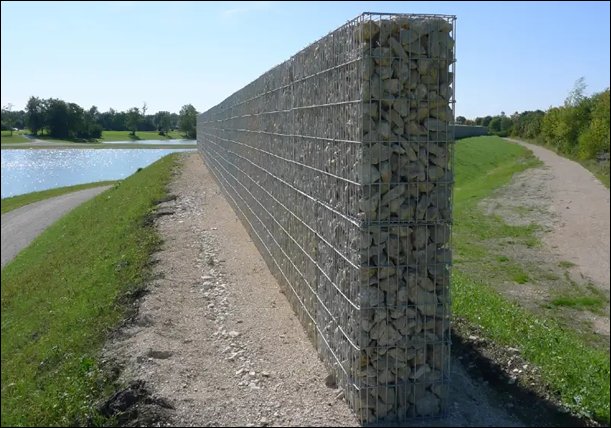

Constructing Gabion Retaining Walls

Risks may occure in construction of gabion retaining walls and substructures:

• Limestone Saturation and Swelling: The saturation of limestone can lead to swelling, potentially compromising the stability of substructures and retaining walls.
• Unforeseen Ground Conditions: The risk of encountering unknown ground conditions, such as sub-surface voids, adds a layer of complexity to construction projects, demanding robust contingency planning.
• Neighbouring Structure Impacts: Construction can adversely affect neighbouring structures, necessitating meticulous planning to minimize impact.
• Unsuitable Fill Material: The use of inappropriate fill material for retaining walls can lead to wall failure, highlighting the importance of thorough material testing and selection.
• Gabion Wall Instabilities: Several factors can destabilize gabion walls, including slope instability leading to pond overflow, uneven loading, distortion or rupture of the mesh, and debonding of wall courses. Unsuitable fill choices, and inadequate geotextile membrane installation can further compromise wall stability.
• Mesh Wire and Drainage Issues: The deterioration of gabion wall mesh due to inadequate protective coating, combined with insufficient secondary drainage systems, can lead to significant wall instability and failure.

Detailed geological surveys, careful material selection, and monitoring can help prevent these issues and ensure the durability and safety of gabion retaining walls and substructures.

Gabion Fill Requirements

• The gabion fill material must meet the standards set in the “Manual of Contract Documents for Highway Works, Series 600 Earthworks (Class 6G),” with particle sizes ranging from no less than 100mm to no more than 200mm.
• Fill material should be durable, non-degradable, and devoid of any debris or foreign substances.

Gabion Mesh Materials

• Gabion mesh galfan coated PVC coated

Geotextile

• Nonwoven geotextile membrane/separator for draining uses, preventing soil particle loss from under or behind gabion wall while ensuring the structure remains permeable.
