Metech Welded Mesh Inc produces and exports a wide range of wire mesh containers for industrial use. Industrial Wire Mesh Containers are welded wire grid cage units popularly used in warehouse, manufacturing and logistics for transportation and storage of bulky items.
Wire mesh containers are designed to fit standard pallet sizes, easily stacked and transported using pallet jacks or forklifts, enhancing storage and logistical efficiency.
Steel Wire Container is also known as Wire Pallet Cage or Wire Mesh Pallet Container.
Product Features:
Maximize space efficiency;
Easy handling;
Compatibility with standard pallets and shelving systems;
Collapsible and stackable design, saving space, maximizing storage efficiency, easy installing.
Mobility: Optional casters or wheels can be added for easy movement.
Security: Wire cage can be fitted with lids and locking mechanisms for secure storage.
Materials
Wire mesh pallet containers are designed with a base, side panels and optional components (lid and caster wheels). Common finishes include galvanized, powder-coated, electroplated and hot-dip galvanized finish against corrosion. Following materials are commonly used:
- Steel: Common material used for wire mesh containers is carbon steel, galv. or electro plated.
- Stainless Steel: Stainless steel wire mesh containers offer superior resistance to rust and corrosion, often used for food processing or pharmaceutical applications.
- Galvanized Steel: Galvanized steel wire containers are resistant to corrosion, suitable for outdoor use or in moist environments.
- Powder-Coated Steel: Powder-coated steel wire containers are resistant to scratching, chipping, fading, and wear, available in a variety of colors.
- Wire Mesh Types: Wire mesh can vary in terms of mesh size, wire diameter, resulting in various visibility, airflow, and security of the mesh containers. Smaller mesh sizes provide better security for smaller items, while larger mesh sizes are suitable for bigger objects and provide better visibility and airflow.
Quality Control Through Manufacturing Process
Quality control through manufacturing process for wire mesh storage containers, mainly the following steps:
- Material Selection: Choice metal material is selected and uses, tested to meet required properties.
- Welding: Strong, firm and uniform welded wire structure is commonly used for storage containers.
- Fabricating: Cutting and shaping with precise and smooth finish.
- Assembly: The sides, base, and components (doors or lids) are assembled to form the complete container, by welding or fasteners.
- Finishing: Wire storage containers are treated with galvanizing or powder coating to enhance corrosion resistance and durability.
- Quality Check: The finished wire containers are inspected for quality, ensuring they meet the required specifications and standards.
General Specification of Wire Mesh Containers
Metech wire grid basket containers are made in various designs and sizes. Common sizes include:
- Small Containers: 20 inches (508 mm) (L) x 15 inches (381 mm) (W) x 12 inches (305 mm) (H).
- Medium Containers: 32 inches (813 mm) (L) x 20 inches (508 mm) (W) x 22 inches (559 mm) (H)
- Large Containers: 40 inches (1016 mm) (L) x 30 inches (762 mm) (W) x 30 inches (762 mm) (H)
- Extra-Large Containers: 48 inches (1219 mm) (L) x 40 inches (1016 mm) (W) x 36 inches (914 mm) (H)
- Custom Dimensions: In addition to standard sizes, we offer custom length, width, and height.
- Material Type and Coating: Galvanized steel, stainless steel, powder-coating.
- Door and Lid Options: Doors, lids and locking mechanisms available for security.
- Accessories: Casters, internal divider layer available.
- Load Capacity:
- Static Load: Up to 2000 kg.
- Dynamic Load: Up to 1500 kg.

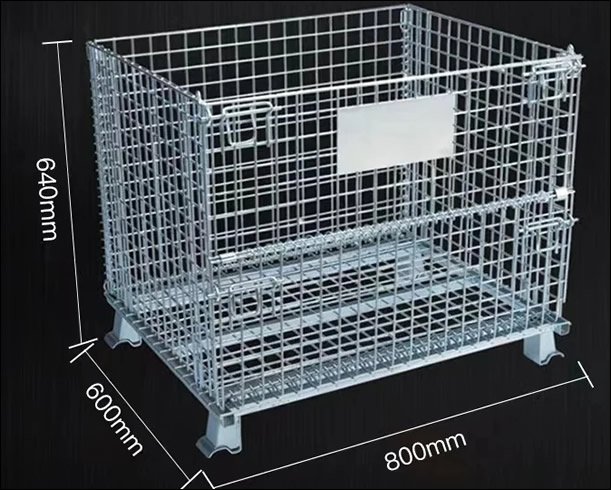

Collapsible Wire Cage Container 640x600x800mm, 500kg Loading Capacity
Collapsible wire pallet containers facilitate easy identification and inventory management for various industrial applications.
Standard Specification:
- External Dimensions: 800mm (L) x 600mm (W) x 640mm (H)
- Internal Dimensions: 750mm (L) x 550mm (W) x 500mm (H)
- Wire Diameter: 4.8mm
- Mesh Size: 50mm x 50mm
- Load Capacity: 500kg
- Container Weight: 20.5kg
- Leg Height: 100mm
- Dimensional Tolerance: ±5mm
- Featuring mesh structure for visibility and ventilation, sturdy wire for strength, a load capacity of 500kg, forklift access.

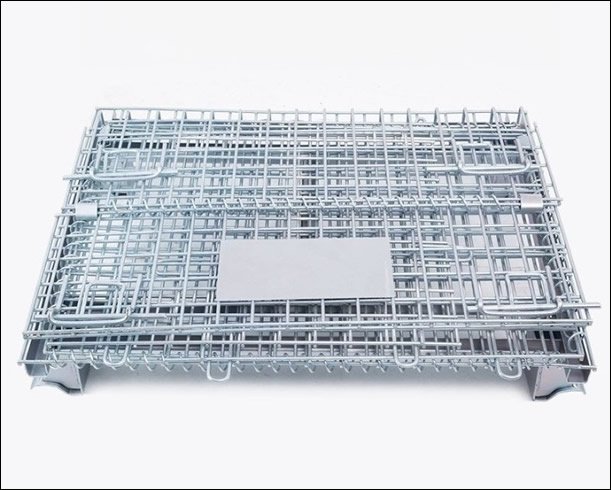

Folding Stackable Wire Mesh Pallet Container Hot Dipped Galvanized
Folding stackable wire grid containers ensure simple transportation and storage when not in use.
Containers can be stacked securely offering maximum storage efficiency for logistics or storage.
Finish: HDG.
Designed with plastic plates for labeling.

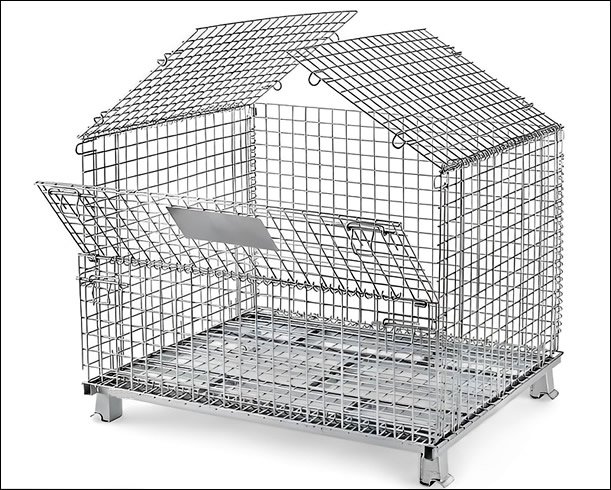

Chrome Electroplated Wire Storage Cage
Steel wire grid basket container, chrome plated for corrosion resistance and a polished appearance.
This wire basket container features a secure lid and a front gate, allows for easy loading and unloading.
Structure: Durable welded wire grid.
Stackable panels for optimizing logistics and storage efficiency.
