Metech Welded Mesh Inc manufactures and supplies welded wire mesh partitions for security and storage.
Steel mesh partitions are commonly used in warehouses, data centers and manufacturing facilities to create secure and storage areas in various environments.

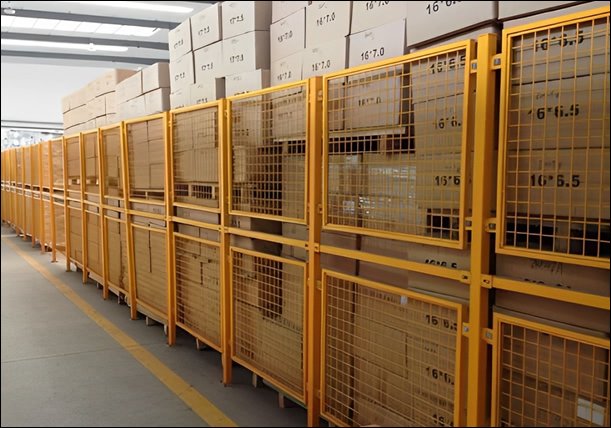

Steel Wire Mesh Partitions for Storage
Color: Yellow
Specifications: Smaller grid patterns
Feature: Secured storing, ease of access and good visibility.

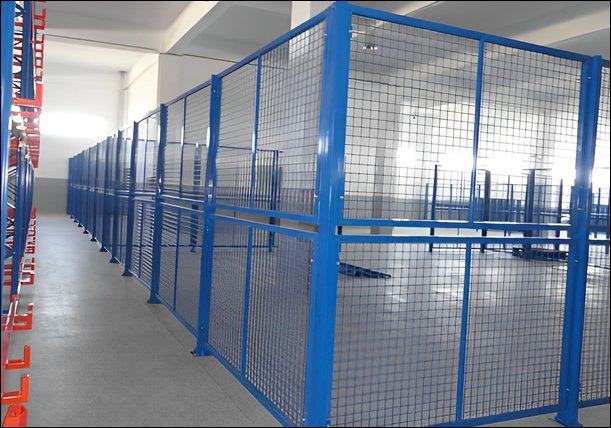

Wire Mesh Partitions for Space Separation
Color: Blue
Specifications: Supplied in modular wire mesh partition panels framed with steel bar

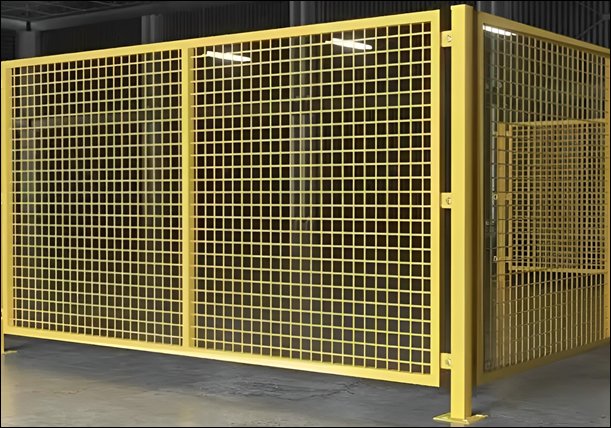

Permanent Wire Mesh Partitions for Enhanced Security Barrier
Color: High visible golden yellow.
Specifications: Mesh panels with solid tubular framing
Feature: Security barrier for inventory or restricted zones.

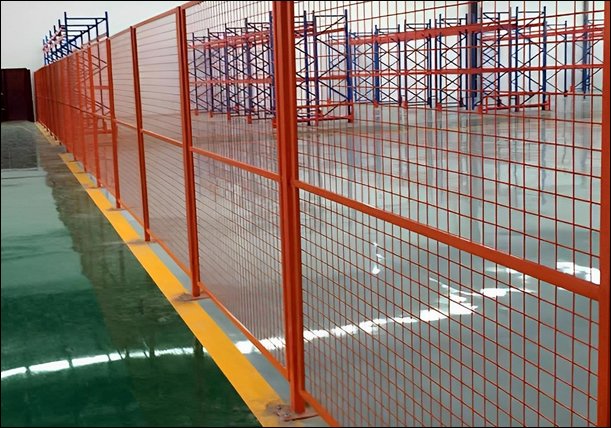

Wire Mesh Partitions for Area Dividing
Color: Orange
Specifications: Various specifications available for mesh panels.
Uses: To segment large areas for organized storage and workspaces.

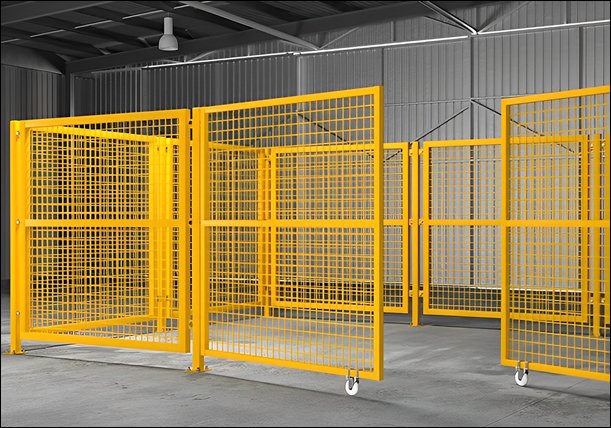

Security Wire Mesh Partitions for Flexible Protection
Color: Yellow mesh panels with yellow frame
Specifications: Designed with wheels for portable fencing and guarding uses.
Uses: Flexible partitions for storage and zone dividing in spaces.
Partition Types According to Application
Wire Mesh Partitions are supplied with various types for various uses.
- Standard Partitions: Enclosures for areas separation or demarcation, used in warehouses, factories, and storage facilities.
- Security Partitions: Designed with reinforced mesh and locks, security partitions are ideal for securing inventory, tools, and machinery in commercial and industrial environments.
- Storage Cages: Wire Mesh Partitions can be fabricated into storage cages used in retail stores, distribution centers and archives.
- Machine Guarding: Wire Mesh Partitions are used as machine guards barriers between operators and equipment.
- Perimeter Fencing: Wire Mesh Partitions can be installed as perimeter fencing to secure certain areas.
- Temporary Partitions: For event enclosures, construction site barriers, and crowd control.
- Customized Solutions: Wire Mesh Partitions can be customized to meet specific requirements, including size, shape, mesh density, and finish. To meet specific needs in various industries and applications.
Wire Mesh Partition General Specifications
- Mesh Size: 0.5 inches x 0.5 inches (12.7 mm x 12.7 mm), to 2 inches x 2 inches (50.8 mm x 50.8 mm).
- Hole Type: Square or Rectangular
- Wire Gauge: 12 gauge (2.77 mm diameter),10 gauge (3.25 mm diameter), 6 gauge (4.88 mm diameter)
- Panel / Sheet Size: 48 inches x 96 inches (1219 mm x 2438 mm), to 72 inches x 120 inches (1828 mm x 3048 mm)
Materials
Wire Mesh Partitions Panels are available in various materials:
Galvanized Steel: Panels made of galvanized steel with durability and corrosion resistance, suitable for both indoor and outdoor use. Common panel sizes include standard widths of 1220 mm (48 inches) and heights ranging from 610 mm to 3048 mm (24 inches to 120 inches), with custom sizes available upon request.
Stainless Steel: Stainless steel panels ideal for food processing facilities and pharmaceutical plants. Standard panel sizes include widths of 914 mm to 1829 mm (36 inches to 72 inches) and heights ranging from 610 mm to 2439 mm (24 inches to 96 inches), custom sizes available to meet specific requirements.
Surface Treatment
Wire Mesh Partitions Panels can be galvanized and vinyl coated:
Vinyl Coating: Partition Panels coated with vinyl offer additional protection against corrosion, abrasion, and impact. Standard panel sizes for vinyl-coated steel partitions range from 609.6 mm to 1219.2 mm (24 inches to 48 inches) in width and 609.6 mm to 2438.4 mm (24 inches to 96 inches) in height, custom sizes available.
Installation Tips of Wire Mesh Partitions
General overview of the installation process steps:
Planning and Preparation
Measure the Space: Accurately measure the area where the wire mesh partition will be installed.
Select the Right Components: Based on the measurements and specific needs (e.g., security level, airflow, visibility), select the appropriate wire mesh panels, doors, posts, and hardware.
Check for All Parts: Before beginning the installation, ensure all components, including panels, posts, brackets, doors, and locking mechanisms, are on hand.
Installation Steps
- Layout the Area: Mark the floor where the posts will be anchored. This is crucial for aligning the panels correctly and ensuring a secure installation.
- Install Posts: Secure the posts to the floor using concrete anchors or other appropriate fasteners.
- Attach Panels to Posts: Attaching wire mesh panels to the posts using the provided brackets, clips, or bolts. Panels may be secured at the top and bottom, and sometimes in the middle, depending on panel height.
- Secure Panels Together: For installation involves multiple panels, secure the panels to each other at the edges, by using panel clamps or fasteners.
- Install Doors: For wire mesh partition system with doors, secure the door with posts. Install door hardware, such as handles, locks, or panic bars, according to the instructions.
- Final Adjustments: Once all panels and doors are installed, make necessary adjustments. Check all locks and closures.Safety
- Follow Safety Guidelines: Always follow safety guidelines for using tools and handling materials.
Maintenance
- Maintenance: Regularly inspect the wire mesh partitions for signs of damage, wear, or loose fasteners.
- Proper maintenance ensures the long term use and security of partition products.
