Metech Welded Mesh Inc. supplies high quality Galvanized Before Weld (GBW) Wire Mesh products. For welded mesh galvanized before welding (GBW), the wire can be electro-galvanized or hot-dip galvanized, electro-galvanized wire is commonly used. GBW welded mesh is used for fences, animal cages, grills, and various architectural and gardening applications. GBW welded mesh costs less compared with GAW type wire mesh.
Hot-Dipped Galvanized (GBW) Welded Wire Mesh for Pakistan
Mesh Size: ¾ inch (19 mm) square hole
Roll Size: 6 feet (1828.8 mm) wide x 50 feet (15,240 mm) long
Wire Diameter: 0.065 inches (1.65 mm), with a tolerance of +/- 0.15 mm.
Material Strength: Minimum 30 KSI (Kilopounds per Square Inch) tensile strength
Galvanization: Zinc coating thickness of 80 +/- 5 grams per square meter (with a minimum of 75 grams per square meter)
Wire Material: Low carbon steel wire
Construction: Steel wires are hot-dipped galvanized before welded into mesh fabric
Applications: Ideal for fencing, agricultural enclosures, garden supports, and security barriers.
1/2″ x 1/2″ (12.7 mm) Square Opening, #19 Gauge Wire for India
Welded wire mesh for chicken pens flooring. 1/2″ x 1/2″ square mesh (12.7 mm x 12.7 mm) welded with #19 gauge wire. We provide both Galvanized After Weld (GAW) and Galvanized Before Weld (GBW) options.
Wire diameters ranges:
- #14 gauge: Approximately 2.03 mm
- #15 gauge: Approximately 1.83 mm
- #16 gauge: 0.065 inches or 1.65 mm
- #17 gauge: 0.058 inches or 1.47 mm
- #18 gauge: 0.049 inches or 1.24 mm
- #19 gauge: 0.036 inches or 0.91 mm
- #20 gauge: 0.035 inches or 0.89 mm
- #21 gauge: 0.032 inches or 0.81 mm
- #22 gauge: 0.028 inches or 0.71 mm
- #23 gauge: 0.025 inches or 0.64 mm
Welded Wire Mesh for Peru
- Sheet Size: 3m x 3m，Custom sizes available upon request
- Rolls: 3m x 24.7m or 1.5m x 24.7m，other sizes available
- Mesh Dimensions: 4″ x 4″，other sizes available.
- Wire Diameter: 2mm or 0.08″, other sizes available upon request
- Galvanization Options: Galvanized Before Welding (GBW) & Galvanized After Welding (GAW), Non-galvanized options also available
- Applications: For industrial, agricultural, and residential uses
- Customizations: Custom coatings, dimensions, and packaging available
Galvanized Steel Welded Wire Mesh for Brazil
- Wire Gauge: 14 gauge (2.03 mm or 0.080 inches)
- Mesh Opening Size: 1″ x 2″ (25.4 mm x 50.8 mm)
- Available Roll Sizes:
36 inches x standard roll lengths
48 inches x standard roll lengths
60 inches x standard roll lengths
72 inches x standard roll lengths - Galvanization Options:
Galvanized Before Welding (GBW): Wire galvanized before welding.
Galvanized After Welding (GAW): Wire mesh galvanized after welding of wire - Applications:
For industrial, security, and agricultural fencing
For cages and enclosures
For building and construction reinforcement

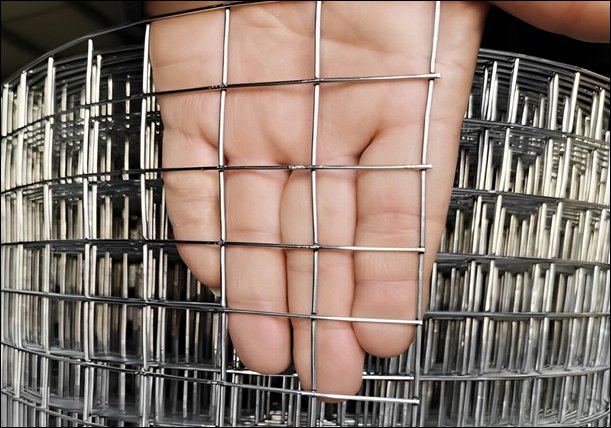

Details of GBW wire mesh, galvanized wire firmly and uniformly welded at each intersection with precision opening.
- Material: Low carbon steel wire
- Coating: Galvanized before welding
- Mesh Size: 2 inches x 2 inches (50mm x 50mm)
- Wire Diameter: About 0.080 inches (2mm)
- Welding: Consistent at intersections
- Application: For fencing, animal enclosures, and agricultural use
1.5×1.5inch Welded Mesh GBW Type
- Mesh Size: Approximately 1.5 inches x 1.5 inches (38mm x 38mm)
- Wire Diameter: Approximately 0.065 inches (1.65mm)
- Application: For construction reinforcement, fencing and barriers
- Material: Low carbon steel wire
- Coating: Galvanized before welding
- Mesh Size: Approximately 0.5 inches x 0.5 inches (12.7mm x 12.7mm)
- Wire Diameter: Approximately 0.045 inches (1.14mm)
- Form: Supplied in rolls
- Application: Used in infrastructure projects, concrete reinforcement, and garden trellises
