Metech Welded Mesh Inc produces and exports 358 Welded Mesh High-Security Fencing, also known as Prison Fence. 358 welded mesh panels are designed to meet maximum security fencing requirements widely used for prisons and military areas.
Material types:
Galvanized steel 358 Mesh ( Additional Powder Coating Available);
Galfan wire 358 Mesh ( Additional Powder Coating Available).
Standard Galvanized Welded Wire Mesh (Profile 358) Fencing
358 Fence Panel with Post and Gate System
- Type: Standard galvanized 358 profile welded wire mesh
Construction: Modular panels with post system
Double Leaf Gate constructed with 358 mesh panel. - Gate width: 6m
- Double Leaf Gate – 12M System
358 Welded Mesh Security Fencing for Australia
- Type: Anti-Climb Welded Mesh
- Panel Height: 2400 mm
- Total Length: 188 meters
- Standard: Australia
358 High Security Vandal Resistant Mesh Panels for Canada
Traditional high-security vandal-resistant 358 mesh panels to Canada, detail following:
- Panel Quantity: 4 panels
- Panel Size: Panel width 2.50 meter
- Total Length: 10 meters
- Post Quantity: 6 posts
- Fencing Mesh: High-security 358 mesh panels welded
- Post Spacing: 2500mm apart
- Attachment: Bolts fixed to the existing boundary wall
- All necessary fixings and accessories included
- Color: RAL 6000 (Patina Green)
High-Security 358 Mesh Fencing of Galfan Wire
358 mesh fencing made from Galfan wire offers excellent corrosion resistance. Galfan coated 358 mesh fencing is available with aluminum alloy galvanizing, or aluminum galvanized and powder-coated finish.
Galfan Wire for 358 Mesh High-Security Fencing
- Galfan wire is a hot-dip galvanized wire with a zinc-aluminum alloy coating, typically consisting of 10% aluminum and 90% zinc. Galfan coating quantity ranges between 265 g/m² and 300 g/m². Additional PVC or powder coating is commonly applied to Galfan wire mesh for maximum corrosion resistance and durability.
Mesh Aperture: 75x16mm
- Sheet dimensions:
- 2100mm height x 2404mm length
- 2384mm height x 2404mm length
- 2700mm height x 2404mm length
- 3000mm height x 2404mm length
Channel Posts (uneven)
- Dimensions: 50x115x30x4mm, Weight: 5.6kg/m
- Lengths available: 3000mm, 3300mm, 3600mm, 3900mm
- Strength: 350MPa
I-beam Posts:
- Profile: 100UC, Weight: approximately 14.8kg/m
- Lengths available: 3000mm, 3300mm, 3600mm, 3900mm
Rails:
- Dimensions: 50x50x4mm, Length: 2411mm
- Strength: 250MPa, featuring 8 x 9mm slots
Additional components:
- Bolts: M12 x 30 and M8 x 40, M8 x 30 Cup Head Bolts, Grade 8.8
- Nuts: M12 and M8 Shear Nuts, Class 8
- Washers: M12 and M8
- 550mm coil diameter concertina wire: CBT-65
358 Anti-Climb Welded Mesh Fence Aluminum Coated with Razor Wire Shipped to New Zealand
358 Mesh Fencing with Razor Wire and Remote-Controlled Gate: The mesh panels are difficult to climb or cut through, enhanced with razor wire topping, ideal for prison perimeters and other high-security areas.
- Type: Razor Wire Prison Fence
- Mesh Type: 358 Mesh
- Finish: Aluminum coated
- Features: Anti-Climb
- Height: 12 feet
- Length: 2000 feet
3000mm x 2515mm Galfan Finish 358 Prison Mesh Fencing
Panel Size: 3000 mm in length x 2515 mm in width.
Finish: Galfan (zinc-aluminum coating)
Type: 358 prison mesh fencing
358 Welded Mesh Panels
358 Fence Panels for Parking
- Features: Anti-climb design
- Application: For securing parking areas
- Panel Size: 2.4 meters
358 Welded Mesh Panels & Gate with Posts Shipment to USA
- Fence Height: 2.4 meters, razor wire can be added.
- Length: From 200 to 400 feet.
- Finish: Galvanized and powder coated black.
358 Mesh Fences for Shipping to Middle East
- Anti-climb Mesh Panels: Height 2m x width 2.30m.
- 358 Mesh Type Panels: 48″x96″ powder-coated black steel mesh panels.
- PVC Coated Weldmesh: 358 series, 720m long x 2.7m high x 3mm thickness, coated in green PVC.
- 2D – 358 Mesh Fence: Panel size 2500×3000 mm (LxH), galvanized and finished with RAL 6005.
- 358 Mesh Fence Rolls:
Length: 50m rolls
Inner wire diameter: 2cm
Outer wire diameter: 1.6cm
Width: 0.8m, 1m, 1.2m, 1.5m, and 1.8m - 358 Weld Steel Mesh Fencing & Gates:
Mesh Fencing: 1m wide x 30 m long
Double Gate: 3m high x 7.5m wide
Single Gate: 3m high x 1.2 m wide
358-Security Fencing Mesh Flat Panel
- Panel Size: 2400 mm long x 1000m wide.
- Mesh Type: “358” design: with 3″ x 0.5″ openings and 8 gauge wire.
- Wire Diameter: 4 mm
- Spacing: 76.2 mm vertically x 12.7 mm horizontally.
- Weld Shear Strength: 75%.
- Panel Type: Flat panels.
Application
358 welded mesh for various high-security fencings, including:
- Prisons and other facilities
- Military zones
- Industrial properties
- Power plants
- Government buildings
Images illustrations:

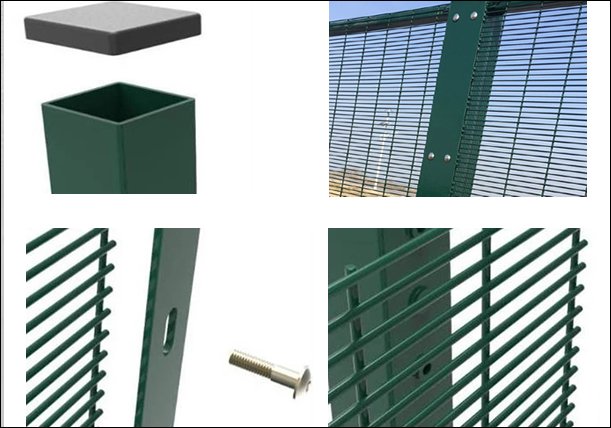

Installing of Mesh panels with bolts and post:
Mesh Size: 76.2 mm x 12.7 mm (3″ x 0.5″), Wire Diameter: 4 mm.

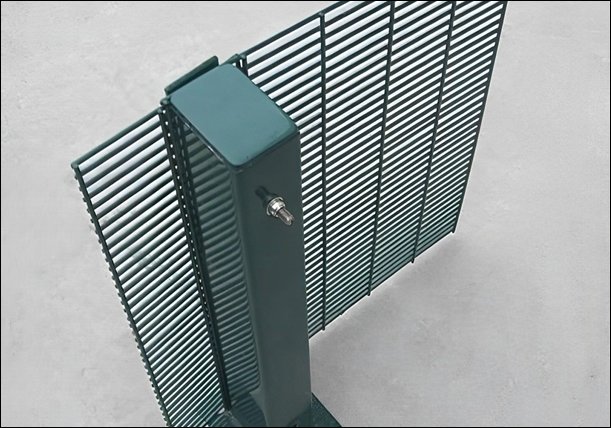

Flat mesh panels 358 style, galva. and green powder coated finish

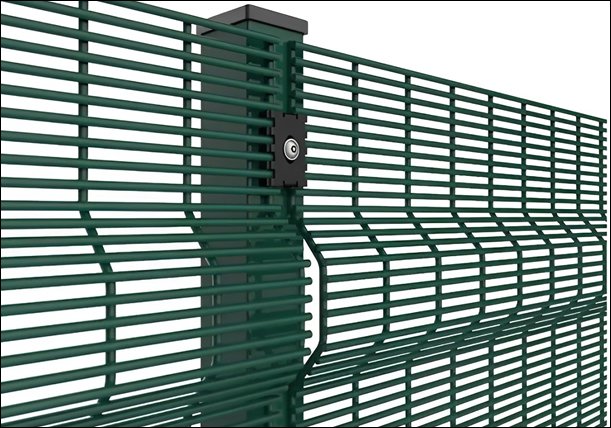

3D curved fencing panel for prison security
Quality and Specifications
Metech Welded Mesh Inc supplies high quality 358 welded mesh fencing in various sizes and finishes for specific security needs and environmental conditions. For more detailed information, please contact us.
