Metech Welded Mesh Inc produces and exports high-quality airport security fences designed for safety and security of airport perimeters. We supply standard wire mesh fencing options and customized services to meet specific project needs.
Chain Link Fences
Chain link fences are popularly used for airport security, made of galvanized or coated steel wire woven into diamond mesh fabric. The wire fences are versatile, cost-effective and easy to install, barbed and razor wire tops can be added for improved security. Two examples of airport chain link fencing projects:
Chain Link Wire Mesh Fencing at Lusaka International Airport
- Chain link wire mesh 4mm wire diameter, fence height 2.6 m, for perimeter security.
PVC Coated Chain Link Fence for Project in Nairobi
- 48 rolls of green PVC coated chain link wire mesh fence. Wire gauge 10 gauge, mesh size 2-inch, 7 feet high x 50 feet in length.
- Accessory Materials: Including 1440 meters green PVC coated straining wire (10 gauge) and 1440 meters of galvanized barbed wire (9# 14 gauge) for security fencing top.
Welded Wire Fences
Welded wire fence offers a highly solid structure difficult to penetrate, ideal for airport and other high security fencing uses.

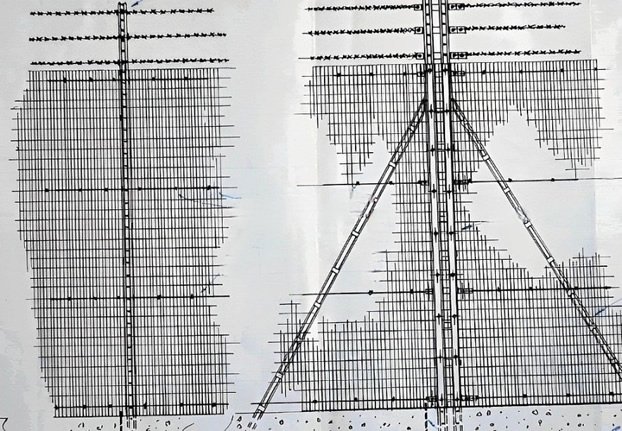

High-security welded wire fence designed specifically for airport perimeter safety. This illustration offers a view of the layout, the mesh panels fixed with posts and concrete barrier, topped with razor barbed wire. The uniform and dense mesh pattern deter unauthorized access.
- Fence Height: 2.4 meter high fence panel provides a barrier to prevent scaling.
- Welded Mesh Design: Sturdy and tamper-resistant.
- Post Spacing: Steel posts placed at specific intervals to ensure structural integrity.
- Concrete Barrier: A barrier at the base to enhance security and stability.
The image shows a detailed side elevation of fence post for the security fencing system: detail specifications of the post, foundation, and connecting to the fence panels, and supports of barbed wire and barbed tape.
- Post Dimensions: As indicated
- Barbed Tape: Anti climbing tops of Clipped razor tape, 700 mm in diameter.
- Foundation: A concrete foundation, with polythene sheeting.
Galvanized Welded Mesh Fence designed for airport perimeter security, offers following benefits:
- Precision Construction and Material Strength
This fencing system is made from welded mesh anti-climb and anti-cutting tools. - Structural Integrity
Vertical and horizontal wires welded at each junction, the design provides both functionality and durability, ensuring a long-lasting security solution. - Reinforcement
The fence is further reinforced with horizontal supports. - Customization
Fencing mesh panels can be made for customization in terms of height and width, meeting the requirements of different airport perimeters. - High Security Fencing System for Airport
Welded wire mesh fence reinforced and topped with barbed wire and concertina razor wire is ideal for airports.
Palisade Fencing System for Airport Perimeter
Palisade fences are constructed from vertical steel bars and horizontal rails, with sharp tops and robust design, suitable for high-security areas. We supply hot dipped galvanized zinc coated palisade fencing designed for high-security areas and premises such as government facilities, embassies, and airport perimeters.
- Height Options: Available in 2.4M, 2.7M, and 3.0M.
- Width: Customizable based on project requirements.
- Pale Type: W section, D section.
- Head Type Options: Pointed, Triple Pointed, Rounded, Rounded and Notched, Flat, Star Picket
- W Pale Thickness: 2mm, 2.5mm, and 3mm
- Surface Treatment: Hot dipped galvanized, available in 600g/m2, 80um, and other specifications. PVC coating available.

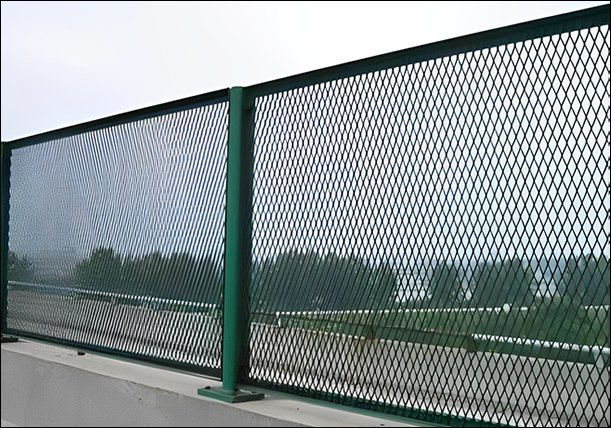

Expanded Metal Fences
Expanded metal fences are made of stretching metal sheet mesh offering supreme durability and security. The metal fences are designed to be cut-resistant and difficult to climb, ensuring optimal security for sensitive areas within the airport. Expanded metal fences for airport security can be supplied in various sizes according to specific security requirements and perimeter dimensions.
- Material Type: High-quality steel.
- Material Thickness: 3mm to 5mm.
- Width: Available in standard panel widths or customized to specific site dimensions.
- Height: 2 meters to 4 meters.
- Mesh Hole: Diamond Shape
Strand Width: 1.5mm to 6mm.
LWD (Long Way of Diamond): The length of the long diagonal of the hole, 25mm to 200mm.
SWD (Short Way of Diamond): The length of the short diagonal of the hole, 13mm to 80mm. - Surface Treatment:
Galvanized: Hot-dipped or electro-galvanized.
Powder Coated: Available in various colors, green, biege as popular color.
