Metech Welded Mesh Inc manufactures and exports high-security mesh fencing, especially Anti-climbing, Anti-Cut and Rigid Security Fence solutions. Fence materials include Anti Climbing Mesh Panels Galvanized and Fusion Bonded Epoxy Coated, Posts, Spikes and Gates.

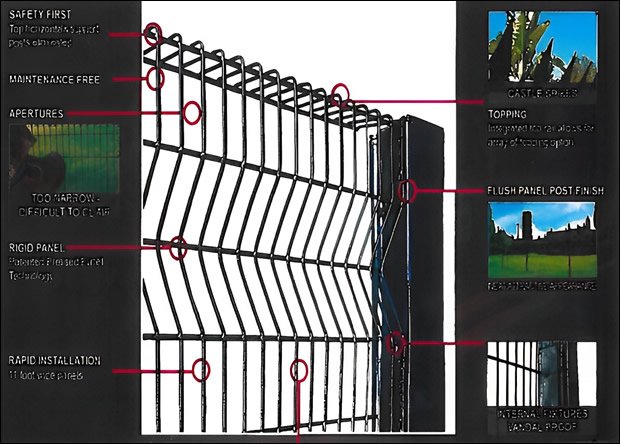

Anti-climb Security Fences offer enhanced safety and protection comparing with common wire fences.
Features:
- Anti-Climb: The design features minimal spacing, discouraging intruding and scaling attempts.
- Anti-Cut: The fence is constructed with durable materials that resist cutting tools and breach attempts.
- Rigidity: Rigid structure ensures functional barrier under physical stress.
Anti Climbing Fence Products
Fencing system commonly including high security anti climb mesh panels, automated security gates and standard pedestrian gates.

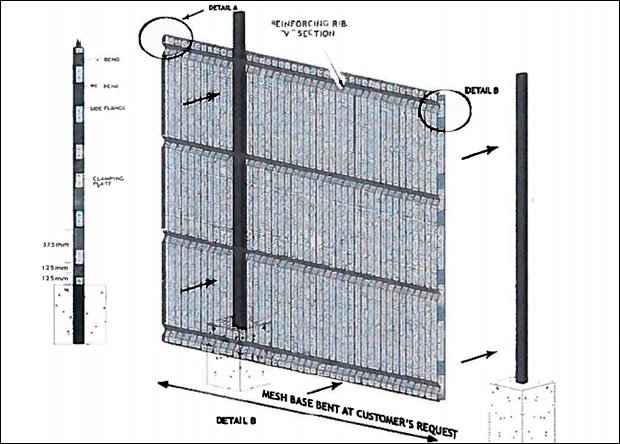

Mesh Fence specifications:
- Type: Modular mesh panels, with high visibility and superior resistance to climbing and cutting.
- Finish: Fence panels pre-galvanized and epoxy coated with marine fusion bond or a similar high-quality anti-corrosion coating.
Dimensions:
- Panel width: 3.4 meters each.
- Height: Total panel height 3.4 meters, with 3 meters above ground level and 0.4 meters buried underground.
- Anti Climbing Mesh Panel: 4mm vertical wire and 3mm horizontal wire, aperture size 75mm x 12.5mm.
- Fence Panel Reinforcing: Fence panels are reinforced with four 50mm deep V-shaped horizontal recessed bands, integrated with a modular rail for added strength.
Post specifications:
- Height: Post 3.6 meters high.
- Post Dimensions: 85mm x 45mm x depth 85mm
- Finishes: Posts are hot-dipped galvanized and coated with marine fusion bond or an equivalent high-quality anti-corrosion coating.
Additional security features:
- Topping: Each post is topped with a 100mm castel spike. The razor spikes are galvanized and treated with marine fusion bond coating or similar anti-corrosion finish.
- Underground protection: 0.4-meter-high mesh panel below the ground, with the same aperture as the fence panels (75mm x 12.5mm), pre-galvanized and bitumen coated. This design prevents underground intrusions and enhance perimeter security across the entire boundary.

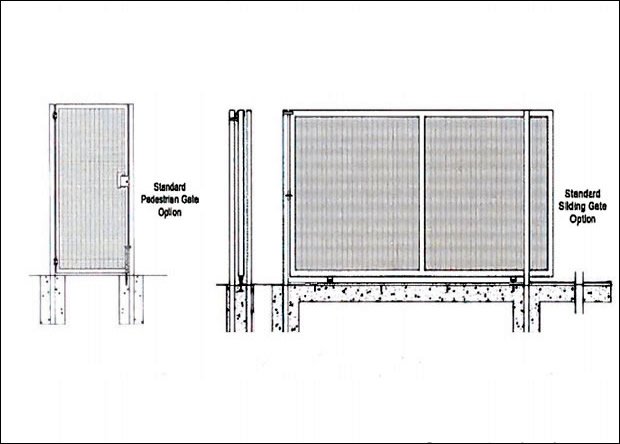

Supply fully automated security gates made with same type of fencing panels:
- a) Two motorized gates (11m length x 3m height) located at the entrance of the main road, Gates No. 1 and 2. (Type: Cantilever gate)
- b) Two motorized gates (11m length x 3m height) located at the office, Gates No. 3 and 4. (Type: Rail gate)
- c) One motorized gate (11m length x 3m height) located at the camp, Gate No. 5. (Type: Rail gate)
- d) One motorized gate (8m length x 3m height) located near the gas station, Gate No. 6.
- e) One motorized gate (8m length x 3m height), Gate No. 6, will also be on the rail.
- f) Supply pedestrian gates with same fencing mesh panels. Gate size (3m high x 1.5m width).
Customized Fencing Solution Provider
We supply modular and customized anti climbing fencing products.
