Metech Welded Mesh Inc produces and exports twin wire fencing panels, also known as Double Horizontal Wire Fencing. Popular fence designs include 2.4m High 656 Twin Wire Fence and 2.4m High 868 Twin Wire Fence.
Features: This reinforced fence panel features twin wire design with two horizontal wires welded to a single vertical wire, offering double security against cutting compared to standard mesh fencing.
Application: Twin wire fence is commonly used for industrial sites, commercial properties, public infrastructure, also used in parks, schools, residential areas boundary and security.

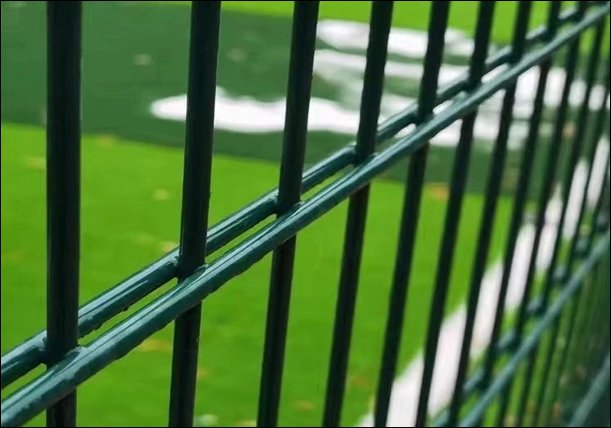

2400mm High 656 Twin Wire Security Fencing
- 656 Style: Double horizontal wire welded at each intersection with the vertical wire: Single vertical wire with a diameter of 5mm, twin horizontal wire with a diameter of 6mm.
- Mesh Size: Mesh openings of 656 Twin Wire Fencing are rectangular shape, at 50 mm x 200 mm (spacing between the vertical x horizontal wires).
- Installation: 656 Twin Wire Security Fencing is installed with fence posts of the same galvanized material as fence panels, anchored in concrete. The installation shall be secured, aligned and evenly spaced for maximum effectiveness and visual appeal.
656 Twin Wire Fence Panels
Mesh: Standard sizes include 50mm x 100mm and 50mm x 200mm; other specifications available upon request.
Wire Diameter: From 3.0mm to 8.0mm; other specifications are available upon request.
Mesh Panel Height: From 1.8m to 4.87m; options available upon request.
Mesh Panel Width: Standard widths from 2.0m to 2.5m; custom widths available upon request.

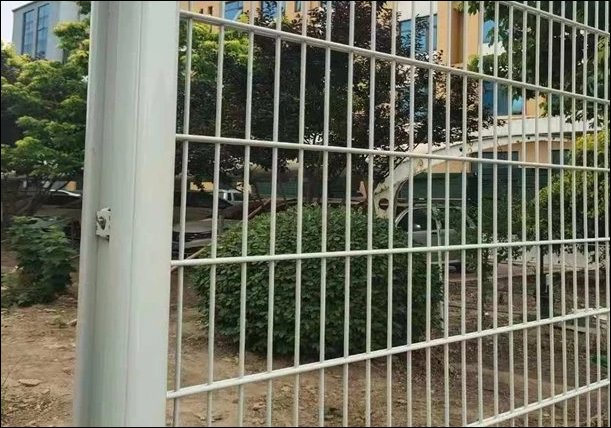

656 Double Horizontal Wire Fencing for Residences Perimeter Protection
Mesh Size: 200mm x 50mm
Finish: Grey powder coated steel fencing

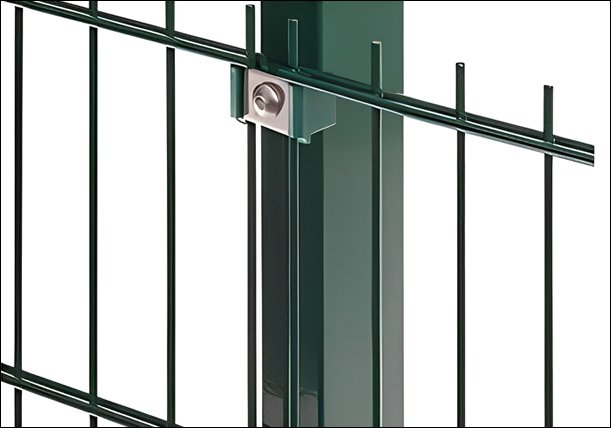

2.4m High 868 Double Horizontal Wire Mesh Fencing
- 868 Style Fence Structure: “868” is named for the wires used in the mesh fence: Horizontal wire are double wire at 8 mm diameter, vertical wire is single wire, at 6 mm diameter.
- Mesh Size: 50×100 mm to 50×200 mm. The close spacing prevents climbing while allowing good visibility through the fence.
868 Twin Wire Security Fencing
Double Horizontal Wire Fencing with twin horizontal wires for added durability.
Mesh size: 200x50mm, Wire diameter: 8mm for vertical wire, 6/8mm for horizontal wire
868 Twin Wire Vertical Bar Fencing
The vertical bars are evenly spaced making a robust mesh.
Mesh size: 200x50mm, Wire diameter: 6mm vertical wire, 5mm horizontal wire.

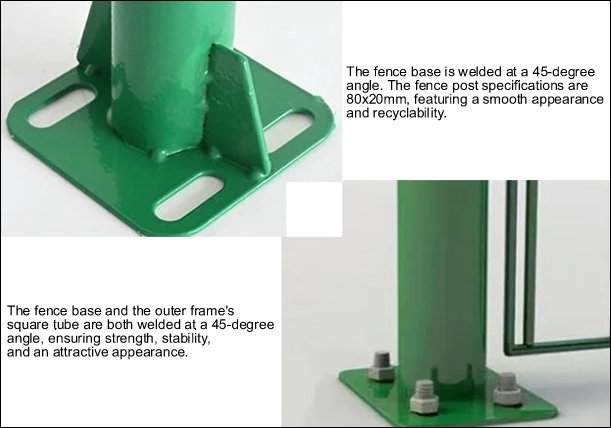

Reinforced Fence Base
Twin Wire Fence Base welded at a precise 45-degree angle to the fence posts, post size 80x20mm.

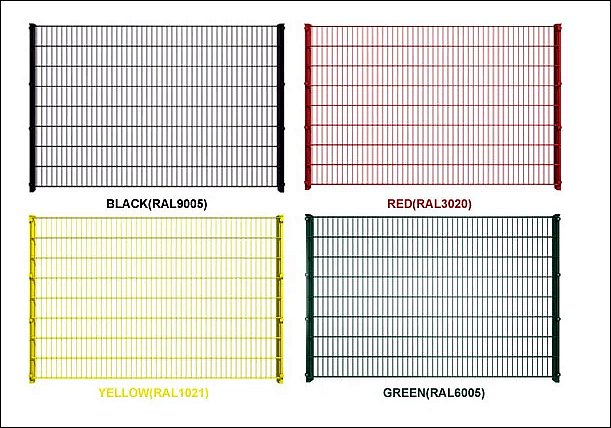

Twin Wire Fencing Panel Vinyl Coated into Black, Yellow, Green, Red
Twin Wire Fencing features a variety of power coating color options, providing decoration and protection.
Twin Wire Welded Mesh Security Fencing Panels are mostly coated in black (RAL9005), red (RAL3020), yellow (RAL1021), and green (RAL6005).
