Metech Welded Mesh Inc manufactures and exports high-quality weld mesh type temporary fence panels galvanized and pvc coated. The portable modular fence panels are mainly used as temporary fences for construction sites, public events, and other temp control applications.
Modular fence panels of welded wire mesh framed with metal tubing offer a robust structure, high strength and easy and rapid assembly and disassembly. Portable mesh panels can be quickly erected to form a fencing barrier on a variety of ground surfaces. We also supply anchors, foot base, stakes with fence panels for enhanced stability and security control.
Temporary Galvanized Fencing of Square Post Tube Framed Welded Mesh
Temporary fencing of tube-framed welded mesh:
The mesh panel is reinforced with square posts;
Weld mesh panels are hot dipped galvanized against corrosion;
Zinc galvanized finish applied to wire mesh and posts ensures a long-lasting, rust-resistant barrier.
- Standard Sizes: Temporary Galvanized Fencing with Square Post Tube Framed Welded Mesh is available in standard heights of 4 feet (1219 mm), 6 feet (1829 mm), and 8 feet (2438 mm), panel width 10 feet (3048 mm).
- Customized Sizes: Heights can be 3 feet (914 mm) and 10 feet (3048 mm), widths can be 5 feet (1524 mm) to 12 feet (3658 mm).
- We also offer customized specifications for mesh, wire gauge and square post sizes.
Weld Mesh Type Temporary Fence for Construction Site
- Specification
Height: 2100mm
Panel Width: 2300mm
Wire dia: 4.5mm
Portable fence fabric: Mesh 75×150mm
Pipe frame: O.D. 48mm
Wall thickness options: 2.5mm - Orange Base Stand
- Two finishes: Electro-galvanized then vinyl powder coated, hot-dip galvanized then powder coated.
Temporary Mobile Wire Fencing Panels for Melbourne, Australia
- Panel Specifications:
Length: 2.4 m, 3.2 m
Height: 2.5 m
Razor wire top can be added for enhancing security. - Material: We supply two types of mesh panels for temporary fencing uses: welded wire mesh and chain link mesh. Both types are hot-dipped galvanized to ensure durability and resistance to the elements.
- Quantity Supply:
2000 panels of each type (welded wire mesh and chain link wire mesh).
2000 brackets/clamps
Posts: Diameter 50mm

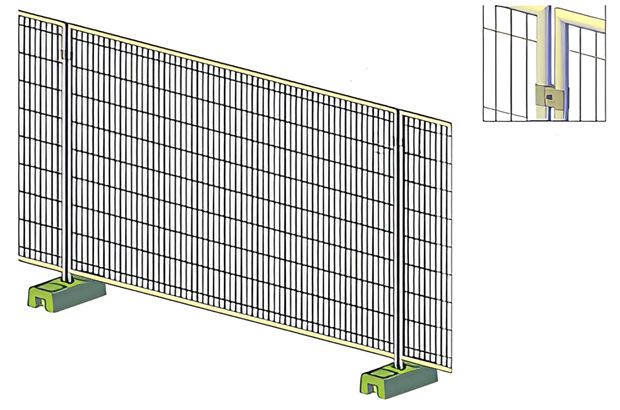

GI Welded mesh type temporary fencing panels with base
- Size : 1800 H x 2500mm L
GI Mesh : 250 H x 100mm W
GI Pipe Dia 38mm
Galvanized iron pipes with a diameter of 38 mm provide robust support to the mesh panels. - Coating Color
Temporary fence panels are available in gray coating, yellow coating and other color.
