Rectangular Steel Welded Wire Mesh Panels


This page introduces mainly Rectangular Opening welded steel bar, the specification and popular sizes. Also comparison with Square opening welded steel reinforcing.

Square and rectangular opening forms two major welded steel bar panels types. Rectangular steel welded mesh is manufactured from spiral ribbed bars welded together with different spacing in each direction to form rectangular apertures. This welded mesh panel is one kind of light type reinforcing wires applied for concrete elements including floor slabs and walls. Compared with square opening welded wires, the rectangular mesh offers more strength in one direction than the other.

Reinforcing rectangular mesh is produced in standard 6m2.4m size sheets, and 4.80m2.4m, 3.6m2m, 2m4m.

Specification:
Cross wire diameter: 6.75mm, 7.60mm
Main wire diameter: 0.75mm, 7.60mm, 8.55mm, 9.50mm, 10.65mm, 11.90mm
The welded Weight kg: 67, 79, 93, 109, 130, 157
Common Mesh opening 100mm200mm. Unless otherwise specified.
Common Mesh Panel Size: 6.0m2.4m, If not specified as others, though custom sizes also acceptable.

Rectangular rib welded reinforcing mesh: Popular sizes listed below.

Referring to our reference no when you send inquiry:

Item No.

Main wire (mm)

Cross wire (mm)

Panel Weight (kgs)

RW1210

11.90@100

7.6@200

157

RW1110

10.65@100

7.6@200

131

RW9510

9.50@100

7.6@200

109

RW8610

8.55@100

7.6@200

93

RW7610

7.60@100

7.6@200

79

RW6810

6.75@100

7.6@200

68

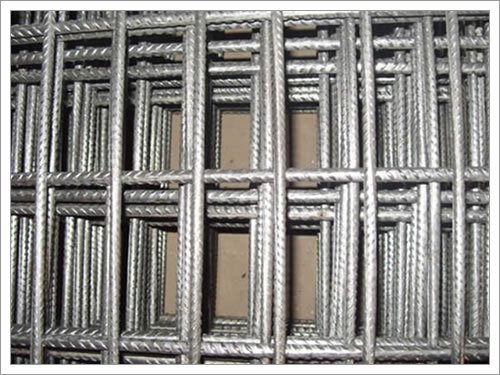

Weld Mesh Panels with Short and Long Openings
Rectangular reinforcing mesh panels, welded ribbed steel bar welded with 9.5mm main wire, 7.6mm cross wire and 100200mm spacing, for concrete slab reinforcing

Galvanized Steel Bar Welded Square Reinforcing Wires
8mm Diameter Steel Bar Welded into Concrete Reinforcement Panels of 150x150mm Square Opening

Metech also supplies square hole reinforcing steel mesh made from 3-12mm ribbed steel bars:

Compared with rectangular mesh, the square reinforcing welded wire mesh are made by arranging wires in two mutually perpendicular directions and connected at the intersection by spot welding.

Advantages of Square Mesh Reinforcing Steel:
It is easier to move and laid in concrete, and has uniform strength to keep the shape and the concrete element.

Specification of Square Mesh Welded Ribbed Steel:
Diameter: reinforcing rebar O 3 - 12 mm
Reinforcing rebar wire distance: 100, 150 , 200, 250, 300 , 400 and 500mm
The most popular welded SQUARE reinforcing mesh spacing: 5050 , 100100 , 150150 , 200200 mm.
Mesh panel width: 0.5m - 2.4m, length 1m - 12m.
The most popular mesh size: 2m6m, 2m3m, 2m4m

Hot Sizes of Square Mesh:

Items

Wire diameter (mm)

Mesh opening (mm)

Weight (kgs/m2)

SW610

6

100100

4.5

SW615

6

150150

3.0

SW620

6

200200

2.2

SW810

8

100100

7.9

SW815

8

150150

5.3

SW820

8

200200

4.0

SW1010

10

100100

12.3

SW1015

10

150150

12.4

SW1020

10

200200

6.2

SW1210

12

100100

17.8

SW1215

12

150150

11.9

SW1220

12

200200

8.9
