Products Catalog

Steel Rebars Welded Mesh Non Galvanized


Steel Welded Mesh Made of Non-Galvanized Black Steel Rebar is the most economic reinforcing mesh panels. Popular size: Rebar Steel dia.= 6mm @200mm c/c both ways,  the welded mesh sizes are 2050mm x 6430mm  &  2050mm x 7195mm. It has a rectangular or square grid pattern and is produced in flat sheets.

The fabric provides tensile strength and crack control to structural concrete elements. Compared with conventional bar reinforcement, the rebars welded mesh is efficient and cost effective for two reasons. First, the welded grid panel is generally specified and manufactured according to standard ( we are listing standard specifications for the UK, New Zealand /Australia and Germany in the table below) references making for easy site identification, quality control and management. Secondly, the mesh is manufactured in sheets or rolls resulting in a quick and simple site installation process.

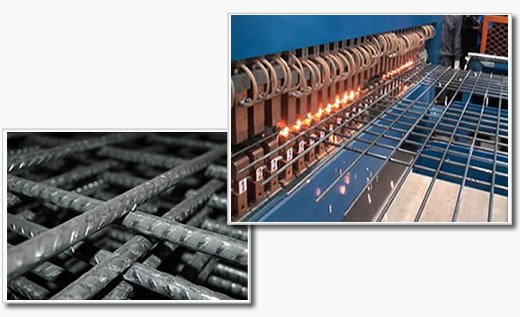

Black Carbon Steel Rebars Welded Fabric with No Galvanizing       Plain Steel Welded Mesh Panel

Together with the welded rebars panels, Metech also supplies steel binding wire and nail wires applied for installing and building:

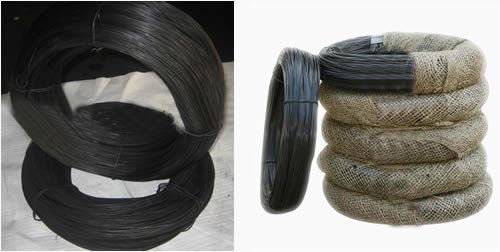

Steel Binding Wire (non-galvanized) Size: SWG 18, 20, 22 & 24. Packed in roll size approx. 25kg.

Nail Wire: size 4, 5 & 6mm (indented, crimped) or custom size.

Non Galvanized Iron Rebar Tie Wire

Features:
Heavy type non-galvanized rebar welded wire mesh panels for reinforcement have precision size and good strength. Steel rebar welded grating is a kind of mesh type sheet with the vertical and horizontal rebars respectively welded together to a certain pitch and arranged at right angles to each other.

Applications of Non-galvanized rebars welded panels:
Generally used in surface beds (concrete floor slabs on fill) and concrete roads, mesh can also be used in suspended floor slabs, concrete walls, culverts / drains and composite brick / concrete retaining walls. Details as follows:
1. Surface beds (concrete floor slabs on fill) and concrete roads
2. Suspended floor slabs, concrete walls, culverts / drains and composite brick / concrete

retaining walls as concrete reinforced mesh
1. In construction of housing floor, roof wall, terrace, concrete pavement.
2. Deck paving, airport runway, tunnel lining, concrete pipes, piles of industry and civilian.

Steel Rebars Welded Mesh Specifications for Different Standards:

1.GERMAN STANDARD DIN488 (SIZE:2150MMX5000MM)

Ref No.

Std Unit

Longitudinal Wires(mm)

Cross Wires(mm)

Pitch of wire(mm)

Mass(Kg)

Mass(Kg/m2)

Q131

Sheet

5

5

150 @ 150

22.476

2.091

Q188

Sheet

6

6

150 @ 150

32.401

3.014

Q221

Sheet

6.5/5.0

6.5

150 @ 150

33.707

3.136

Q295

Sheet

7.5/5.5

7.5

150 @ 150

44.245

4.116

Q378

Sheet

8.5/6

8.5

150 @ 150

66.659

5.157

2.Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400mm)

Ref No.

Std Unit

Longitudinal Wires(mm)

Edge Wires(mm)

Cross Wires(mm)

Mass(Kg)

SL81 (F81)

Sheet

7.6 @ 100

7.60 @ 100

7.60 @ 100

105

SL102 (F102)

Sheet

9.5 @ 200

6.75 @ 100

9.50 @ 200

80

SL92 (F92)

Sheet

8.6 @ 200

6 @ 100

8.60 @ 200

66

SL82 (F82)

Sheet

7.6 @ 200

5.37 @ 100

7.60 @ 200

52

SL72 (F72)

Sheet

6.75 @ 200

4.77 @ 100

6.75 @ 200

41

SL62 (F62)

Sheet

6 @ 200

4.77 @ 100

6 @ 200

33

SL52 (F52)

Sheet

4.77 @ 200

4.77 @ 100

4.77 @ 200

21

3.BRITISH STANDARD BS4483

Ref No.

Std Unit

Longitudinal Wires(mm)

Cross Wires(mm)

Pitch of wire(mm)

No. of sheet per ton

Mass(Kg/m2)

A393

Sheet

10

10

200 @ 200

15

6.16

A252

Sheet

8

8

200 @ 200

22

3.95

A193

Sheet

7

7

200 @ 200

29

3.02

A142

Sheet

6

6

200 @ 200

40

2.22

A98

Sheet

5

5

200 @ 200

57

1.54
