Wire Mesh Cable Tray


Metech is a China supplier of welded wire structural products for various industrial uses. Wire mesh basket type cable tray is designed specially for arranging and conveying the wires of electric power and telecommunication. Metech welded wire cable tray is a substitute for the traditional cable tray with stronger protection and easy lining structures.

Metech supplied major three types of wire basket cable trays for customers choice, OEM available: hot dipped galvanized, blue and white galvanized and colored vinyl coated.

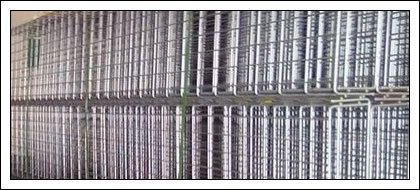

Hot dipping galvanized steel wave welded wire cable tray system: 200*150mm

1. Galvanized Blue and White Wire Mesh Cable Tray:

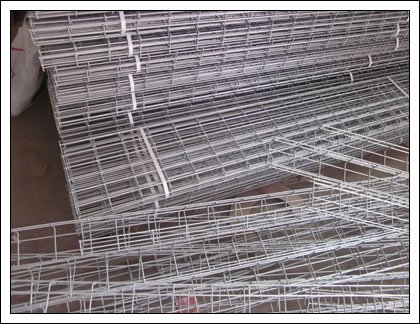

Galvanized Blue Wire Cable Tray

This type is made with a general size of 3000*450*50 Wire Basket.

Surface treatment: Galvanized blue and white

Material: Mild steel

The dimension here listed means the cable tray inside dimension. Usually Length of cable tray is 3000mm. Breadth have different dimensions, bending height can be divided into 30mm, 50mm, 100mm and 150mm. OEM acceptable.

Size of cable tray

3000*400*50mm

Diameter of wire

4mm 5mm

Load Capacity

50-1000kg

Mesh size

100*50mm

Surface treatment

galvanization

Thickness of galvanization

more than 12m

Color

Blue and white

2. Powder Coated Cable Tray, with Photos and Sizes:

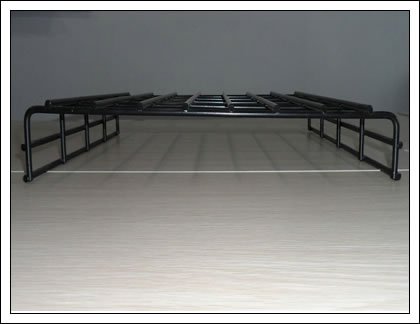

Wire Mesh Cable TRay Black Coated

3. Hot Dipped Steel Wire Mesh Cable Tray:

Surface treatment: Hot dipped zinc plating

All dimension means the inside dimension. Usually Length of hot dipped galvanized cable tray is 3000mm Breadth have different dimensions, bending height can be divided into 30mm, 50mm, 100mm and 150mm.

Wire Basket Cable Tray

No

Item

Dimension

Mesh

Steel(Q235B)

Stainless steel(304L/316L)

Dia

Finish

Dia

Finish

L

W

H

(w*h)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

1

50*30

3000

110

30

100*50

ø4

Galvanization/ Hot-dip galvanization

ø4

Remove the black / Electro polishing

2

100*30

3000

160

30

100*50

ø4

ø4

3

150*30

3000

210

30

100*50

ø4

ø4

4

200*30

3000

260

30

100*50

ø4

ø4

5

250*30

3000

310

30

100*50

ø4

ø4

6

300*30

3000

360

30

100*50

ø4

ø4

7

350*30

3000

410

30

100*50

ø4

ø4

8

400*30

3000

460

30

100*50

ø4

ø4

9

50*50

3000

160

50

100*50

ø4

Galvanization/ Hot-dip galvanization

ø4

Remove the black / Electro polishing

10

100*50

3000

210

50

100*50

ø4

ø4

11

150*50

3000

260

50

100*50

ø4

ø4

12

200*50

3000

310

50

100*50

ø4

ø4

13

250*50

3000

360

50

100*50

ø4

ø4

14

300*50

3000

410

50

100*50

ø5

ø4

15

350*50

3000

460

50

100*50

ø5

ø4

16

400*50

3000

510

50

100*50

ø5

ø4

17

450*50

3000

560

50

100*50

ø5

ø4

18

500*50

3000

610

50

100*50

ø5

ø4

19

550*50

3000

660

50

100*50

ø5

ø4

20

600*50

3000

710

50

100*50

ø5

ø5

21

650*50

3000

760

50

100*50

ø5

ø5

22

700*50

3000

810

50

100*50

ø5

ø5

23

750*50

3000

860

50

100*50

ø5

ø5

24

800*50

3000

910

50

100*50

ø5

ø5

25

100*100

3000

310

100

100*50

ø4

Galvanization/ Hot-dip galvanization

ø4

Remove the black / Electro polishing

26

150*100

3000

360

100

100*50

ø4

ø4

27

200*100

3000

410

100

100*50

ø4

ø4

28

250*100

3000

460

100

100*50

ø4

ø4

29

300*100

3000

510

100

100*50

ø5

ø4

30

350*100

3000

560

100

100*50

ø5

ø4

31

400*100

3000

610

100

100*50

ø5

ø4

32

450*100

3000

660

100

100*50

ø5

ø4

33

500*100

3000

710

100

100*50

ø5

ø5

34

550*100

3000

760

100

100*50

ø5

ø5

35

600*100

3000

810

100

100*50

ø5

ø5

36

650*100

3000

860

100

100*50

ø5

ø5

37

700*100

3000

910

100

100*50

ø5

ø5

38

750*100

3000

960

100

100*50

ø5

ø5

39

800*100

3000

1010

100

100*50

ø5

ø5

40

150*150

3000

460

150

100*50

ø4

Galvanization/ Hot-dip galvanization

ø4

Remove the black / Electro polishing

41

200*150

3000

510

150

100*50

ø5

ø4

42

250*150

3000

560

150

100*50

ø5

ø4

43

300*150

3000

610

150

100*50

ø5

ø4

44

350*150

3000

660

150

100*50

ø5

ø5

45

400*150

3000

710

150

100*50

ø5

ø5

46

450*150

3000

760

150

100*50

ø5

ø5

47

500*150

3000

810

150

100*50

ø5

ø5

48

550*150

3000

860

150

100*50

ø5

ø5

49

600*150

3000

910

150

100*50

ø5

ø5

50

650*150

3000

960

150

100*50

ø5

ø5

51

700*150

3000

1010

150

100*50

ø5

ø5

52

750*150

3000

1060

150

100*50

ø5

ø5

53

800*150

3000

1110

150

100*50

ø5

ø5

Applications:
Welded wire mesh cable trays are used to arrange the wires of electric power and telecommunication.

Advantages of Using Metech Wire Cable Trays:

1)Improving system upgrades and maintenance capabilities which left some updating space.

2)Flexible application of the integrated wire system,

3)It is fast and safe to repair the wire roads and facilities

4)Reducing expensive cost of second investment.

5)Weight is only 1/5 of the traditional ones

6)Saving 2/3 of the installation time than traditional ones

7)Wire system and producing environment is more clear and sanitation and beautiful.

8)Mesh structure helps it to distribute the heat, prolong the life of wires.
